THR female header straight Pin spacing 3.5 mm light gray
In stock: No
Vendor stock: No
Minimal order quantity: 200
Price (excl. VAT):
1,13 €
Subtotal: 226,00 €
MOQ: 200
EAN: 4050821395935
MPN: 2091-1302/200-000
Box: 200
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | THR female header straight Pin spacing 3.5 mm light gray |
| Brand | WAGO |
| Categories |
PCB Connectors & Terminals
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Type of connection | Flexible PCB-connector |
| Rated voltage | 160 V |
| Number of poles | 2 |
| Operating temperature | -60-115 °C |
| Rated surge voltage | 2.5 kV |
| Type of electric connection | Soldering connection |
| Connector model | Free connector |
| Angle PCB/contact | 90° (upwards vertical) |
| Rated current In | 10 A |
Packing details
| Packing level 1 | 4050821395935 |
Other Technical data
| Colour housing | Other |
| Contact type | Pin |
| Type of fastening | Solder |
| Inflammability class of insulation material according to with UL94 | V0 |
| Material of contact surface | Tin |
| Over voltage category | III |
| Pollution degree | 2 |
| Length pin | 3.6 mm |
| Modular spacing connections | 3.5 mm |
| Number of plug-in contact rows | 1 |
| Type of banding | None |
| Suitable for PCB thickness | 2 mm |
| Modular spacing contacts | 3.5 mm |
| Material insulation body | Other |
| Type of PCB fastening | Connecting contact |
Description

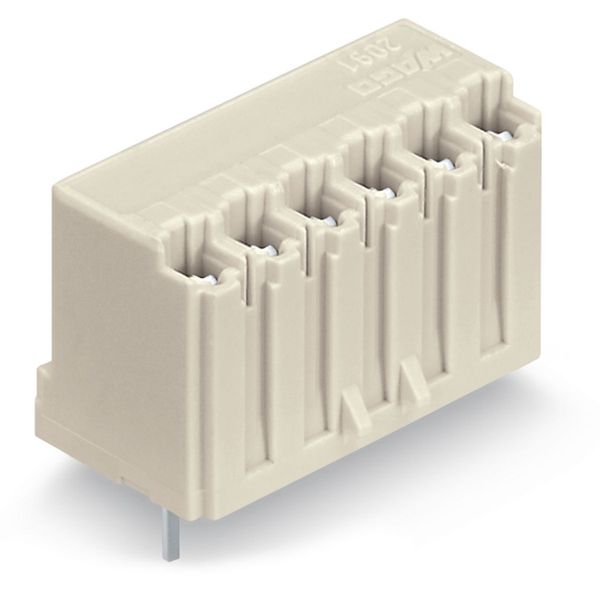

THR female header straight Pin spacing 3.5 mm 2-pole 0.4 x 0.9 mm solder pin light gray
