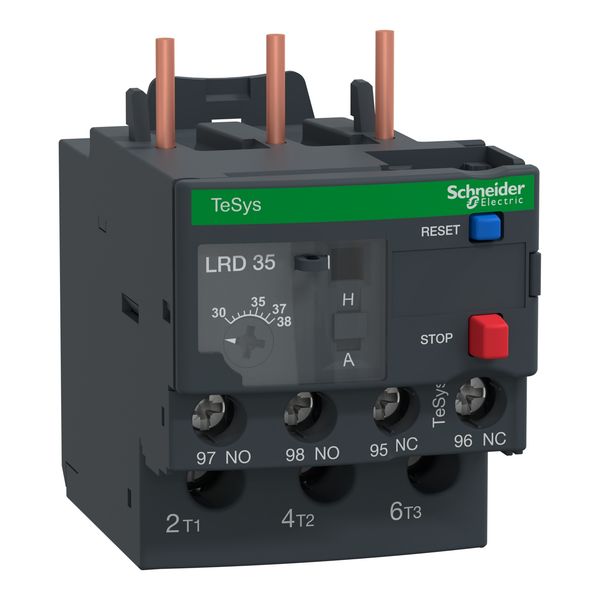

Thermal overload relay TeSys Deca 30–38 A class 10A

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

30,63 €

This price is valid until 24.12.25

EAN: 3389110347067

MPN: LR3D35

Package: 1

Estimate delivery time at our warehouse (approx.): 8-10 weeks

Technical Information

Item condition	New
Manufacture name	Thermal overload relay TeSys Deca 30–38 A class 10A
Brand	Schneider Electric
Categories	Overload Relays
Country of origin	FR
Harmonized System Code	8536 4900 00
Mounting method	Direct attachment
Release class	CLASS 10 A
Type of electrical connection of main circuit	Screw connection
Max. rated operation voltage Ue	690 V
Adjustable current range	30-38 A

Packing details

Packing level 1

3389110347067

Other Technical data

Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as change-over contact	0
Reset function input	No
Reset function automatic	Yes
Reset function push-button	Yes

Description

TeSys LRD thermal overload relay, 38A/690V, thermal setting range 30-38A, tripping class 10A, for protection of 3-phase motors 18.5kW@400V. Non differential device, it can be used with unbalanced loads. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D32-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
