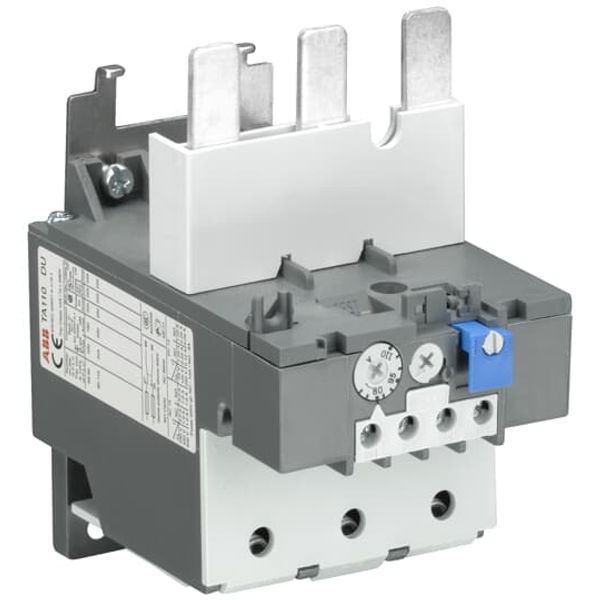

TA110DU-90 Thermal Overload Relay 66 ... 90 A

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

105,12 €

This price is valid until 24.12.25

EAN: 4013614216794

MPN: 1SAZ411201R1001

Package: 1

Box: 4

Estimate delivery time at our warehouse (approx.): 8-12 weeks

Technical Information

Item condition	New
Manufacture name	TA110DU-90 Thermal Overload Relay 66 ... 90 A
Brand	ABB
Categories	Overload Relays
Mounting method	Direct attachment
Release class	CLASS 10 A
Type of electrical connection of main circuit	Screw connection
Max. rated operation voltage Ue	690 V
Adjustable current range	65-90 A

Packing details

Packing level 1	4013614216794
Packing level 2	4013614494192

Other Technical data

Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as change-over contact	0
Reset function input	No
Reset function automatic	Yes
Reset function push-button	Yes

Description

The TA110DU-90 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10A. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory.
