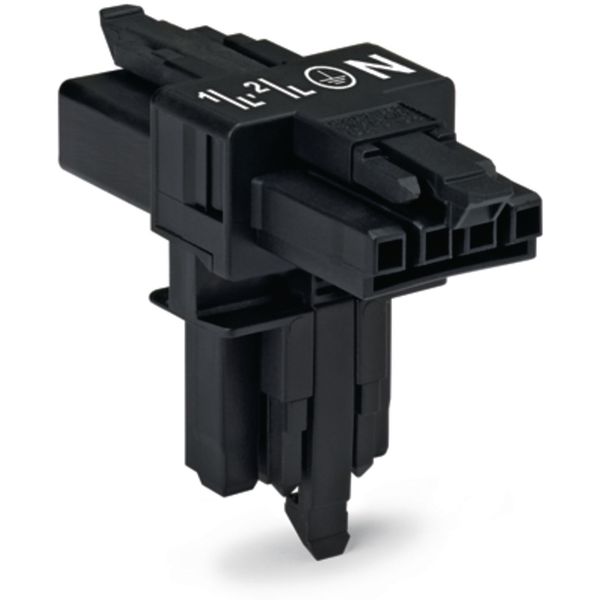

T-distribution connector 4-pole Cod. A black
In stock: No
Vendor stock: No
Minimal order quantity: 25
Price (excl. VAT):
3,65 €
Subtotal: 91,25 €
MOQ: 25
EAN: 4050821229537
MPN: 890-627
Box: 25
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | T-distribution connector 4-pole Cod. A black |
| Brand | WAGO |
| Categories |
Compact Distributors
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 16 A |
| Rated voltage | 400 V |
| Number of inputs | 4 |
| Number of outputs | 8 |
| Number of poles | 4 |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Other |
| Contact material | Other |
| Degree of protection (IP) | IP20 |
| Type of integrated switching | None |
| Type of distributor | T-distributor |
| Rated current to luminaire | 16 A |
| Mounting possibility | No |
Packing details
| Packing level 1 | 4050821229537 |
Other Technical data
| Width | 22.3 mm |
| Halogen free | Yes |
| Height | 39.65 mm |
| Length | 53.9 mm |
| Pollution degree | 3 |
| Mechanical coding | Yes |
| Rated surge voltage | 6 kV |
| Continuity resistor | 0.5 mOhm |
| Colour coding/contact insert | Black |
| Colour of the separate adapter piece | Without adapter piece |
| Max. continuous temperature resistance contact part | 85 °C |
| Max. continuous temperature resistance strain relief | 105 °C |
Description
T-distribution connector 4-pole Cod. A 1 input 2 outputs 3 locking levers for flying leads black
