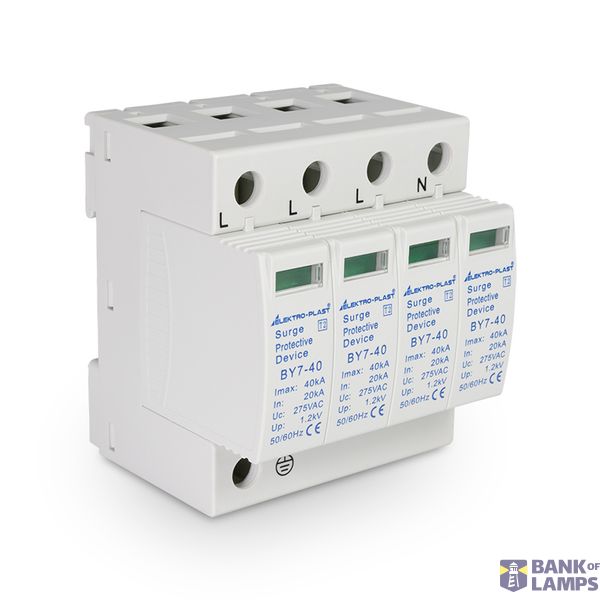

Surge arrester C 4P (T2 AC) BY7-40/4-275
Order only
EAN: 5901769010994
MPN: 87.787
Package: 1
Price (excl. VAT)
31,91 €
per unit
MOQ: 1
EDT to our warehouse: 2-4 weeks
Price valid until 31.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | Surge arrester C 4P (T2 AC) BY7-40/4-275 |
| Brand | Elektro-Plast |
| Categories |
Surge Protection Devices (SPD)
|
| Harmonized System Code | 8536 3090 00 |
| ETIM | EC001457 |
| Voltage protection level | 1.2 kV |
| Nominal voltage AC | 230 V |
| Degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 5901769010994 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| Number of poles | 4 |
| Construction size | 4 modular spacing |
| Remote signalling | No |
| Signalling at the device | Optic |
| Integrated backup fuse | No |
| Max. conductor cross section solid (solid, stranded) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) | 35 mm² |
| Energy-coordinated protection effect with regard to the terminal equipment | No |
| System configuration DC | No |
| System configuration IT | No |
| System configuration TN | No |
| System configuration TN-C | No |
| System configuration TN-S | Yes |
| System configuration TT | No |
| System configuration other | No |
| System configuration TN-C-S | No |
| Voltage switching spark gap technology | No |
| Overcurrent protected voltage tapping | No |
Description
#VALUE!
