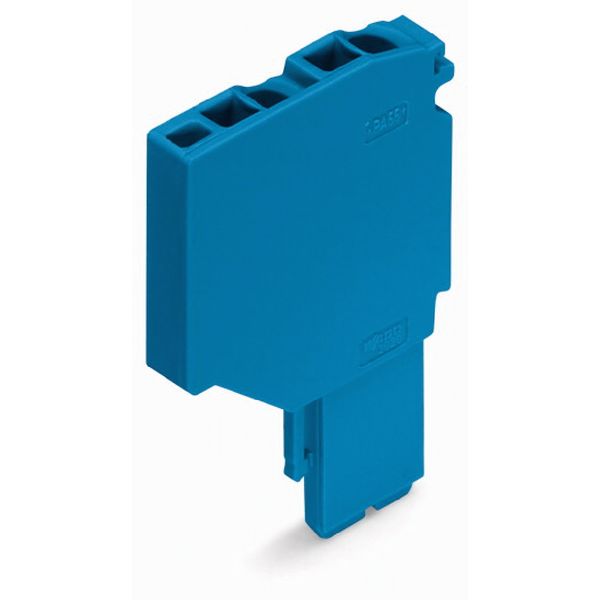

Start module for 2-conductor female connector Push-in CAGE CLAMP® 1.5

In stock: No Vendor stock: No Minimal order quantity: 250

Price (excl. VAT):

1,55 €

This price is valid until 24.12.25

Subtotal: 387,50 € MOQ: 250

EAN: 4045454861285

MPN: 2020-264

Box: 250

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Start module for 2-conductor female connector Push-in CAGE CLAMP® 1.5
Brand	WAGO
Categories	Terminal Block Accessories
Country of origin	DE
Harmonized System Code	8536 6990 00
Rated voltage	500 V
Rated current In	13.5 A
Explosion-tested version 'Ex e'	No

Packing level 1

4045454861285

Mounting method	Other
Colour	Blue
Width	3.5 mm
Halogen free	Yes
Height	25 mm
Depth	40.5 mm
Number of poles	1
Operating temperature	105 °C
Number of clamp positions per pole	2
Inflammability class of insulation material according to with UL94	V0
Closing plate required	No
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Transparent	No
Connectable conductor cross section solid-core	0.5-1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.5-0.75 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14-1.5 mm²
Connectable conductor cross section multi-wired	0.14-1 mm²
Material insulation body	Thermoplastic

Start module for 2-conductor female connector Push-in CAGE CLAMP® 1.5 mm² Pin spacing 3.5 mm 1-pole with integrated end plate 1,50 mm² blue
