Jung

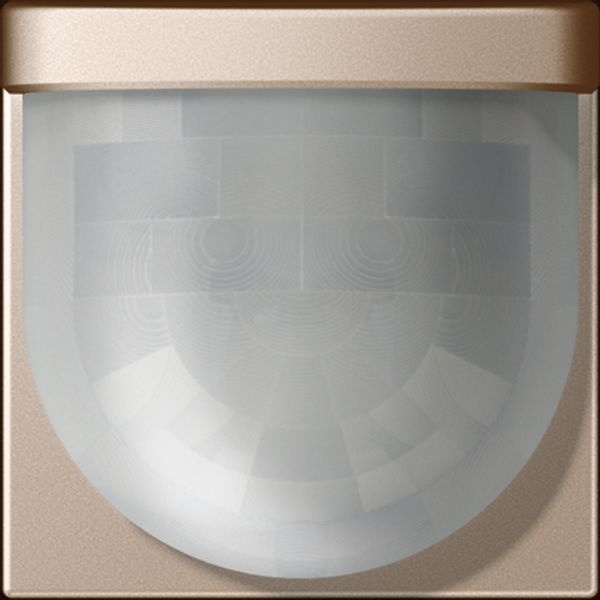

LB Management motion detector 2.2 m A17280CH

Order only
Price (excl. VAT):
72,94 €
This price is valid until 31.12.25
EAN: 4011377167483
MPN: A17280CH
Package: 1
Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition New
Manufacture name LB Management motion detector 2.2 m A17280CH
Brand Jung
Categories Switches
Motion & Presence Sensors
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 9031 8080 00
Mounting method Flush mounted (plaster)
Colour Other
Model Movement sensor
Halogen free Yes
Creep-under protection Yes
Staircase monitoring No
Suitable for wireless transmission No
Material quality Thermoplastic
Max. transmission range frontally 15 m
Max. transmission range sideways 11 m
Material Plastic
Response value sensitivity adjustable Yes
Dim function with dimmer basic element No
Diameter detection range on floor 12 m
HVAC-control No
Constant light control No
Mounting height 2.2 m
RAL-number (similar) 0
Teach-function for response value luminosity Yes
Networkable Yes
Operation mode switch No
Animal zone No
Detection angle horizontal 180 °
Min. switch-on time 2 s
Max. duty cycle 2 min
Suitable for degree of protection (IP) IP44
Response value luminosity adjustable Yes
Switch-off delay self-learning No

Packing details

Packing level 1 4011377167483, 4011377167483
Packing level 2 4011377167483, 4011377167483

Downloads

Deep link REACH

Description

LB Management motion detector 2.2 m A17280CH is designed for integration into switch systems to regulate lighting or connected circuits based on detected movement.Flush-mounted (plaster) installation ensures a seamless fit in wall setups. Halogen-free plastic housing, thermoplastic quality material.Color unspecified but classified as "Other".RAL number undetermined.Horizontal detection angle of 180°, mounting height at 2.2 m.Front-facing max transmission range:15 m;sideways:11 m;floor diameter detection range:12 m.IP44 protection for moderate moisture and dust resistance. Creep-under protection enabled, suitable for networked applications.Luminosity and sensitivity response values adjustable, includes teach-function for luminosity adjustment.Min switch-on time specified at 2 seconds with a maximum duty cycle limit of 2 minutes. No dim functions, no HVAC control feature, no self-learning switch-off delay system integrated.
