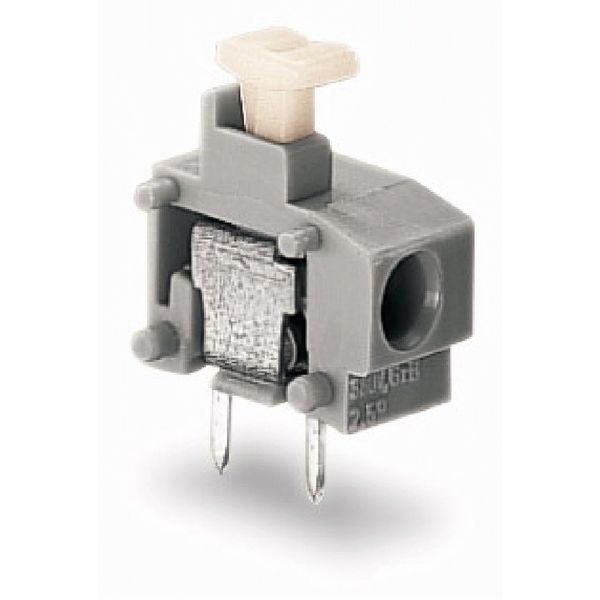

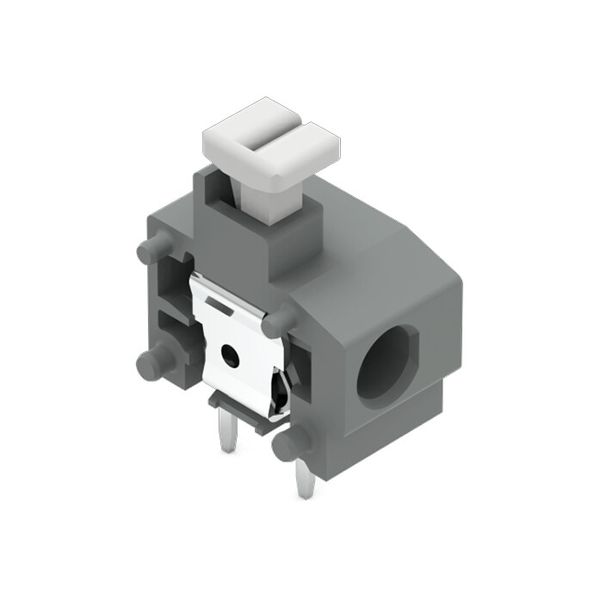

Stackable PCB terminal block push-button 1.5 mm² orange
Order only
Minimal order quantity: 100
Price (excl. VAT):
0,208 €
Subtotal: 20,80 €
MOQ: 100
EAN: 4044918832656
MPN: 235-756/331-000
Box: 100
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Stackable PCB terminal block push-button 1.5 mm² orange |
| Brand | WAGO |
| Categories |
PCB Connectors & Terminals
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| Rated voltage | 630 V |
| Number of levels | 1 |
| Rated surge voltage | 6 kV |
| Angle PCB/conductor connection | 0°/180° (horizontal) |
| Rated current In | 17.5 A |
| Number of electrical connections | 1 |
Packing details
| Packing level 1 | 4044918832656 |
| Packing level 2 | 4044918832656 |
Other Technical data

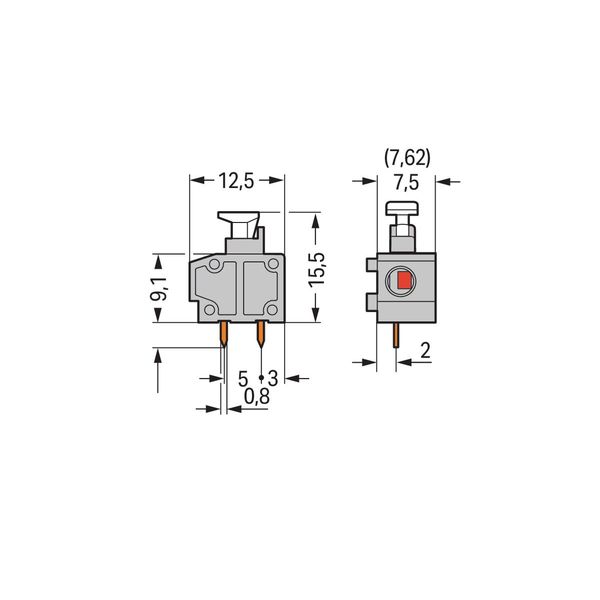

| Height | 15.5 mm |
| Colour housing | Orange |
| Operating temperature | -60-105 °C |
| Type of fastening | Solder |
| Inflammability class of insulation material according to with UL94 | V0 |
| Over voltage category | III |
| Pollution degree | 2 |
| Connection type conductor | Push-in clamp connection |
| Connection type PCB | Soldering connection |
| Length pin | 3.6 mm |
| Material connection surface | Tin |
| Modular spacing connections | 7.5 mm |
| Type of banding | None |
| Connectable conductor cross section solid-core | 0.2-1.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.75-1.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.25-0.5 mm² |
| Material insulation body | Thermoplastic |
| Type of PCB fastening | Connecting contact |
Description
Stackable PCB terminal block push-button 1.5 mm² Pin spacing 7.5/7.62 mm 1-pole Push-in CAGE CLAMP® 1,50 mm² orange
