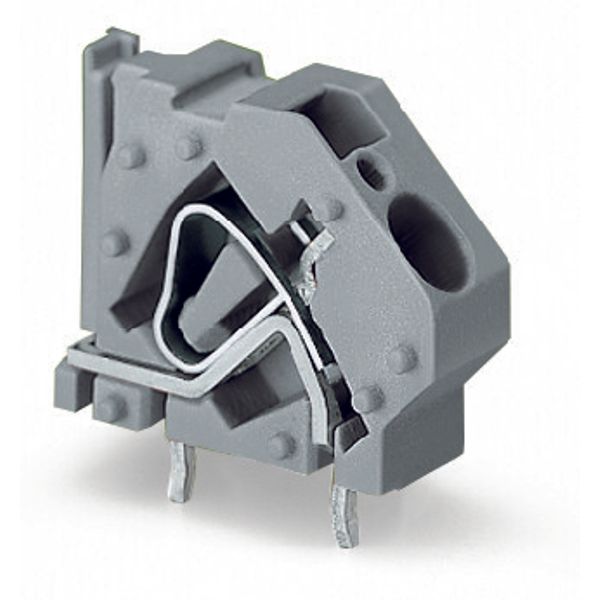

Stackable PCB terminal block;6 mm²;Pin spacing 10 mm;light gray

In stock: No Vendor stock: No Minimal order quantity: 50

Price (excl. VAT):

1,00 €

This price is valid until 24.12.25

Subtotal: 50,00 € MOQ: 50

EAN: 4050821387442

MPN: 745-843/999-950

Box: 50

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Stackable PCB terminal block;6 mm²;Pin spacing 10 mm;light gray
Brand	WAGO
Categories	PCB Connectors & Terminals
Country of origin	DE
Harmonized System Code	8536 9010 00
Rated voltage	1000 V
Number of levels	1
Rated surge voltage	8 kV
Angle PCB/conductor connection	45°/135° (downwards inclined)
Rated current In	41 A
Number of electrical connections	1

Packing level 1	4050821387442
Packing level 2	4050821387442

Height	23 mm
Colour housing	Other
Operating temperature	-60-105 °C
Type of fastening	Solder
Inflammability class of insulation material according to with UL94	V0
Over voltage category	III
Pollution degree	2
Connection type conductor	Spring clamp connection
Connection type PCB	Soldering connection
Length pin	4.5 mm
Material connection surface	Tin
Modular spacing connections	10 mm
Type of banding	None
Connectable conductor cross section solid-core	0.2-6 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25-4 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2-6 mm²
Connectable conductor cross section multi-wired	0.2-6 mm²
Material insulation body	Thermoplastic
Type of PCB fastening	Connecting contact
