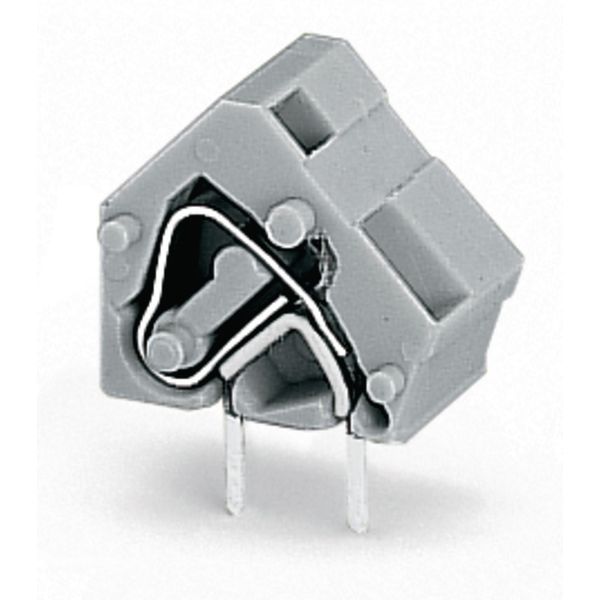

Stackable PCB terminal block 2.5 mm² Pin spacing 10/10.16 mm light gra

In stock: No Vendor stock: No Minimal order quantity: 100

Price (excl. VAT):

0,429 €

This price is valid until 24.12.25

Subtotal: 42,90 € MOQ: 100

EAN: 4044918774888

MPN: 236-763/999-950

Box: 100

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Stackable PCB terminal block 2.5 mm² Pin spacing 10/10.16 mm light gra
Brand	WAGO
Categories	PCB Connectors & Terminals
Country of origin	CH
Harmonized System Code	8536 9010 00
Rated voltage	440 V
Number of levels	1
Angle PCB/conductor connection	45°/135° (downwards inclined)
Rated current In	16 A
Number of electrical connections	1

Packing level 1	4044918774888
Packing level 2	4044918774888

Height	13 mm
Colour housing	Other
Operating temperature	-60-105 °C
Type of fastening	Solder
Inflammability class of insulation material according to with UL94	V0
Connection type conductor	Spring clamp connection
Connection type PCB	Soldering connection
Length pin	4 mm
Material connection surface	Tin
Modular spacing connections	10 mm
Type of banding	None
Connectable conductor cross section solid-core	0.5-2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.75-1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5-2.5 mm²
Connectable conductor cross section multi-wired	0.5-2.5 mm²
Material insulation body	Thermoplastic
Type of PCB fastening	Connecting contact

Stackable PCB terminal block 2.5 mm² Pin spacing 10/10.16 mm 1-pole suitable for Ex-e applications CAGE CLAMP® commoning option 2,50 mm² light
