Stackable 2-conductor PCB terminal block 0.75 mm² Pin spacing 10/10.16
Order only
Minimal order quantity: 100
Price (excl. VAT):
0,208 €
Subtotal: 20,80 €
MOQ: 100
EAN: 4044918833738
MPN: 235-851
Box: 100
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Stackable 2-conductor PCB terminal block 0.75 mm² Pin spacing 10/10.16 |
| Brand | WAGO |
| Categories |
PCB Connectors & Terminals
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| Rated voltage | 1000 V |
| Number of levels | 1 |
| Rated surge voltage | 8 kV |
| Angle PCB/conductor connection | 0°/180° (horizontal) |
| Rated current In | 10 A |
| Number of electrical connections | 1 |
Packing details
| Packing level 1 | 4044918833738 |
| Packing level 2 | 4044918833738 |

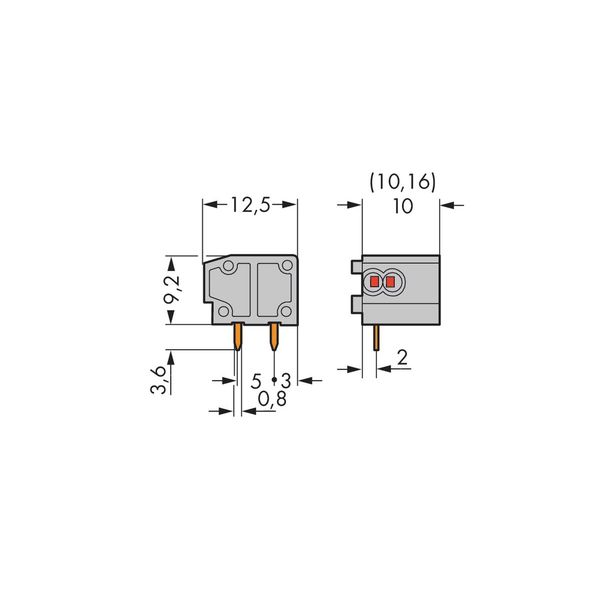

Other Technical data
| Height | 9.2 mm |
| Colour housing | Grey |
| Operating temperature | -60-105 °C |
| Type of fastening | Solder |
| Inflammability class of insulation material according to with UL94 | V0 |
| Over voltage category | III |
| Pollution degree | 2 |
| Connection type conductor | Push-in clamp connection |
| Connection type PCB | Soldering connection |
| Length pin | 3.6 mm |
| Material connection surface | Tin |
| Modular spacing connections | 10 mm |
| Type of banding | None |
| Connectable conductor cross section solid-core | 0.25-0.75 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-0.34 mm² |
| Material insulation body | Thermoplastic |
| Type of PCB fastening | Connecting contact |
Description

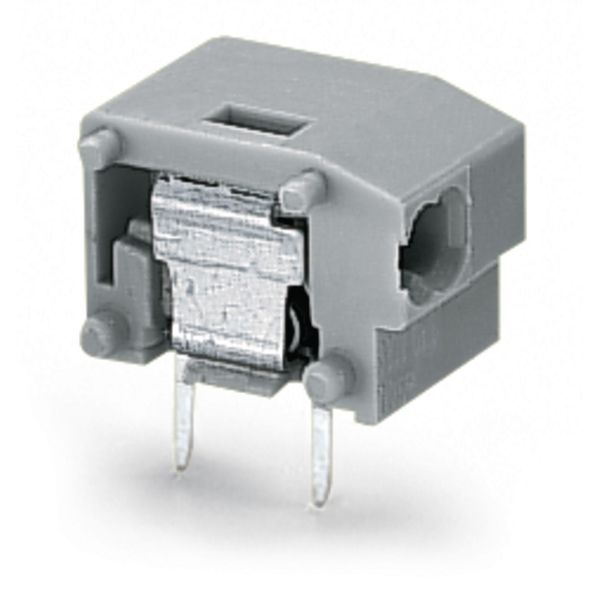

Stackable 2-conductor PCB terminal block 0.75 mm² Pin spacing 10/10.16 mm 1-pole PUSH WIRE® 0,75 mm² gray
