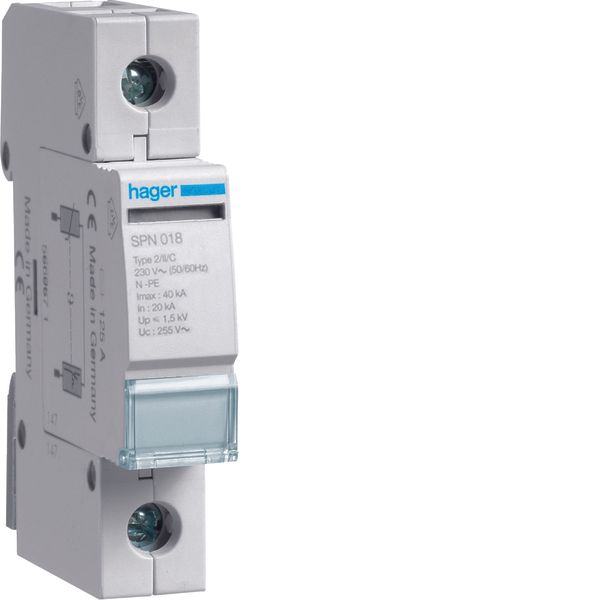

SPD 1P pluggable 40kA
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | SPD 1P pluggable 40kA |
| Brand | Berker |
| Harmonized System Code | 8535 4000 00 |
| ETIM | EC000941 |
| Voltage protection level | 1.5 kV |
| Nominal discharge surge current (8/20) | 20 kA |
| Nominal voltage AC | 230 V |
| Degree of protection (IP) | IP20 |
| Max. PV-voltage | 0 V |
| System configuration DC | No |
| System configuration IT | No |
| System configuration TN | No |
| System configuration TN-C-S | No |
Packing details
| Packing level 1 | 3250615660725, 3250615660725 |
| Packing level 2 | 3250615660725 |
| Packing level 3 | 3250615660725 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| With remote signalling contact | No |
| Max. continuous voltage AC | 255 V |
| Category type 2 | Yes |
| Signalling at the device | None |
| Max. continuous voltage DC | 0 V |
| Voltage protection level N-PE | 1.5 kV |
| Integrated backup fuse | No |
| System configuration TN-C | No |
| System configuration TN-S | No |
| System configuration TT | No |
| System configuration other | Yes |
| Max. discharge surge current (8/20) | 40 kA |
| Integrated short-circuit protection | No |
| Leakage-current free | No |
Description
SPD 1P pluggable 40kA class 2
