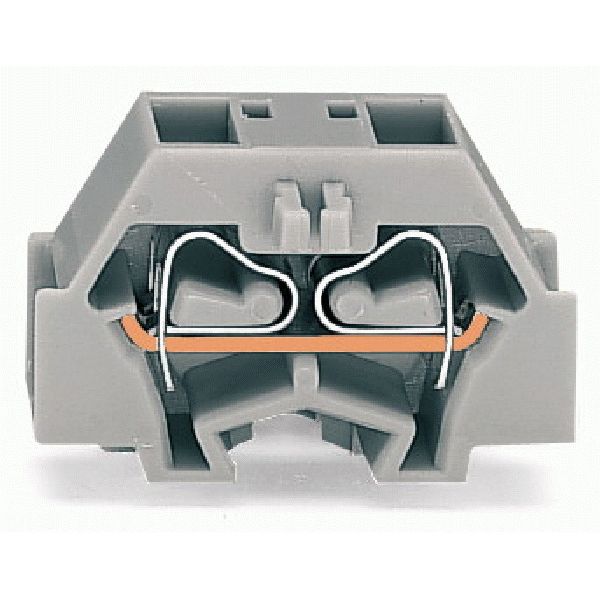

Space-Saving 4-Conductor, 1-Pole, 1.5 mm², Gray
Order only
Minimal order quantity: 50
EAN: 4044918604635
MPN: 260-351
Package: 1
Box: 50
Price (excl. VAT)
0,299 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | Space-saving, 4-conductor end terminal block without push-buttons with |
| Brand | WAGO |
| Categories |
Terminal Strips
|
| Country of origin* | CH |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| ETIM | EC001284 |
| Rated voltage | 400 V |
| Rated current In | 18 A |
| Explosion-tested version 'Ex e' | No |
Packing details
| Packing level 1 | 4044918604635 |
| Packing level 2 | 4044918604635 |
| Packing level 3 | 4044918604635 |
Other Technical data
| Mounting method | Other |
| Colour | Grey |
| Width | 8 mm |
| Halogen free | Yes |
| Height | 25.1 mm |
| Depth | 17.1 mm |
| Number of poles | 1 |
| Operating temperature | -30-85 °C |
| Number of clamp positions per pole | 4 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | Yes |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Transparent | No |
| Connectable conductor cross section solid-core | 0.08-1.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.08-1.5 mm² |
| Connectable conductor cross section multi-wired | 0.08-1.5 mm² |
| Material insulation body | Thermoplastic |
Downloads
Description
Space-saving, 4-conductor end terminal block without push-buttons without protruding snap-in mounting foot 1-pole for terminal strips with snap-in
