Socket with strain relief housing 3-pole white
In stock: No
Vendor stock: No
Minimal order quantity: 25
Price (excl. VAT):
2,93 €
Subtotal: 73,25 €
MOQ: 25
EAN: 4055143369336
MPN: 770-223/035-050
Box: 25
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Socket with strain relief housing 3-pole white |
| Brand | WAGO |
| Categories |
Plug-in Connectors
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Model | Bus |
| Connection type | Spring clamp connection |
| Locking mechanism | Separate |
| Rated current | 25 A |
| Rated voltage | 250 V |
| Number of poles | 3 |
| Length | 77 mm |
| Degree of protection (IP) | IP20 |
| Pole codification | L, N, PE |
Packing details
| Packing level 1 | 4055143369336 |
Other Technical data
| Width | 30 mm |
| Halogen free | No |

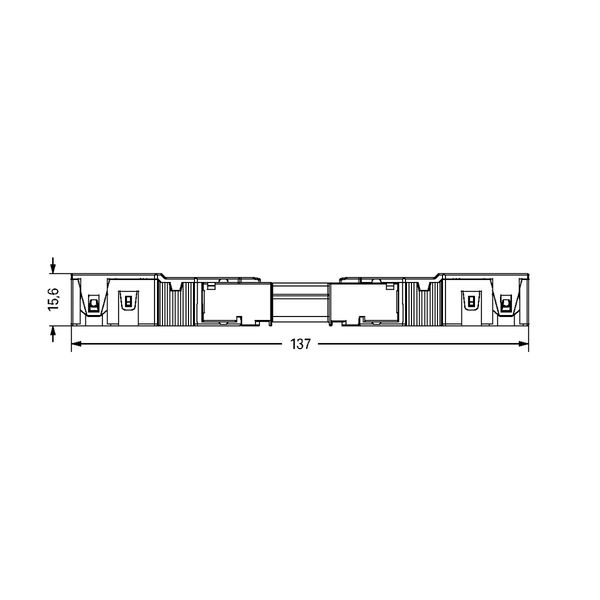

| Height | 15.6 mm |
| With strain relief | Yes |
| Housing material | Polyamide (PA) |
| Cable diameter | 7-11.5 mm |
| Surface treatment contacts | Other |
| Pollution degree | 3 |
| Mechanical coding | Yes |
| Rated surge voltage | 4 kV |
| Continuity resistor | 3 mOhm |
| Contact material | Other |
| Number of connections per pole | 2 |
| Colour coding/contact insert | White |
| Connection cross section (fine-strand) | 0.5-4 mm² |
| Connection cross section (solid-core) | 0.5-4 mm² |
| Max. continuous temperature resistance contact part | 85 °C |
| Max. continuous temperature resistance strain relief | 105 °C |
Description
Socket with strain relief housing 3-pole Cod. A 4,00 mm² white
