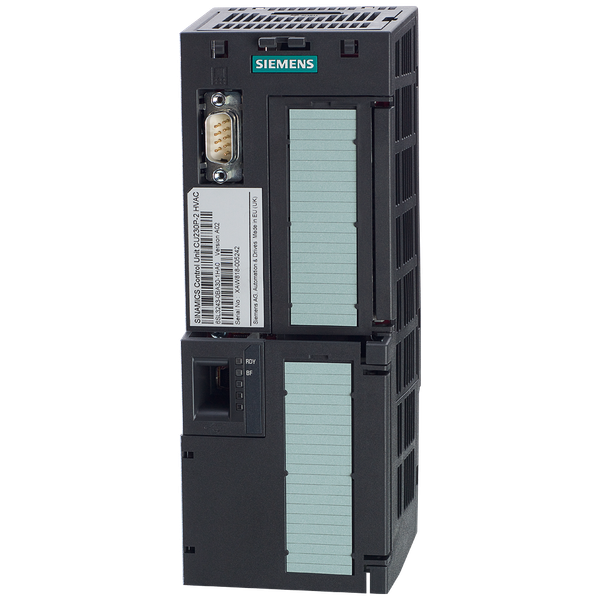

SINAMICS CU230P-2 DP
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
282,89 €
EAN: 4042948665886
MPN: 6SL3243-0BB30-1PA3
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SINAMICS CU230P-2 DP |
| Brand | Siemens |
| Categories |
Frequency converter =< 1 kV
|
| Country of origin | GB |
| Harmonized System Code | 8504 9090 00 |
| Relative symmetric net voltage tolerance | 0 % |
| Relative symmetric net frequency tolerance | 0 % |
Packing details
| Packing level 1 | 4042948665886 |
Other Technical data
| Width | 73 mm |
| Height | 199 mm |
| Depth | 65.5 mm |
| With control element | No |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 5 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| With PC connection | Yes |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| 4-quadrant operation possible | No |
| Number of interfaces PROFINET | 0 |
| Integrated breaking resistance | No |
| Application in industrial area permitted | No |
| Application in domestic- and commercial area permitted | No |
| Max. output frequency | 0 Hz |
| Max. output at linear load at rated output voltage | 0 kW |
| Max. output at quadratic load at rated output voltage | 0 kW |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | Yes |
| Supporting protocol for SafetyBUS p | No |
| Max. output voltage | 0 V |
| Nominal output current I2N | 0 A |
| Supporting protocol for BACnet | No |
| Degree of protection (NEMA) | 1 |
Description
SINAMICS G120 Control Unit CU230P-2 DP integrated PROFIBUS DP 6 DI, 3 DO, 4 AI, 2 AO 1 motor temperature sensor input 2 PSU-out (10 V DC, 24 V DC) 1 PSU-in (24 V DC) USB and MMC interface Degree of protection IP20 Control Unit SINAMICS CU230P-2 DP Control Unit – the specialist for pump, fan and compressor applications together with the modular SINAMICS G120 and/or SINAMICS G120P inverter. The CU230P-2 Control Unit is part of the modular SINAMICS G120 inverter (comprising power unit, control unit, operator panel).
The SINAMICS Control unit is specifically designed for drives with integrated technology functions required in building technology and the process industry.
The CU230P-2 Control Unit controls and monitors the power unit (Power Module) and the connected motor; several control modes can be selected.
It allows communication to a local or central control system as well as to monitoring equipment – and is used to connect all process-relevant auxiliary units and external components, such as sensors, valves, contactors, etc.
The I/O interface, the fieldbus interfaces and the additional software functions optimally support applications in building technology and the process industry.
The inverter communication interface is defined when selecting the CU230P-2. The following integrated communication versions are available: CU230P-2 HVAC with USS, Modbus RTU and BACnet MS/TP protocols, P1 protocol for HVAC. CU230P-2 DP PROFIBUS and CU230P-2 PN PROFINET, EtherNet/IP for the process industry.
In the SINAMICS G120 system, the Control Unit can be operated with the following Power Modules: PM240-2 (0.55 kW to132 kW) and PM240 (up to 250 kW).
In the SINAMICS G120P system, the Control Unit is operated with the following Power Modules: PM230 (up to 90 kW), PM 240 (up to 132 kW). SINAMICS - simply my drive!
