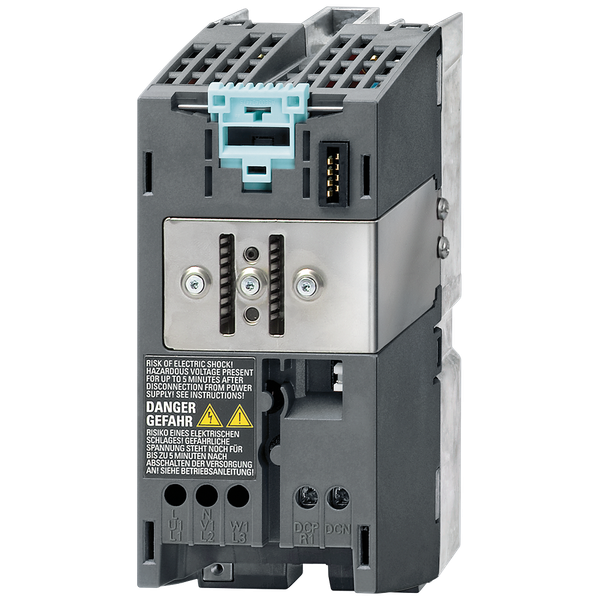

SINAMICS converter PM340 0,75 kW 3,9 A FSA
Order only
Discontinued
Price (excl. VAT):
1 050,67 €
per pcs
EAN: 4042948660027
MPN: 6SL3210-1SB14-0AA0
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SINAMICS converter PM340 0,75 kW 3,9 A FSA |
| Brand | Siemens |
| Categories |
Frequency converter =< 1 kV
|
| Country of origin* | GB |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8504 4090 00 |
| Mains voltage | 200-240 V |
| Number of phases input | 1 |
| Relative symmetric net voltage tolerance | 0 % |
| Relative symmetric net frequency tolerance | 0 % |
Packing details
| Packing level 1 | 4042948660027 |
Other Technical data
| Width | 73 mm |
| Height | 173 mm |
| Depth | 145 mm |
| With control element | No |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 0 |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Degree of protection (IP) | IP20 |
| With PC connection | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| 4-quadrant operation possible | No |
| Number of interfaces PROFINET | 0 |
| Integrated breaking resistance | No |
| Application in industrial area permitted | No |
| Application in domestic- and commercial area permitted | No |
| Max. output frequency | 0 Hz |
| Max. output at linear load at rated output voltage | 0 kW |
| Max. output at quadratic load at rated output voltage | 0 kW |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Max. output voltage | 0 V |
| Nominal output current I2N | 0 A |
| Supporting protocol for BACnet | No |
Description
***spare part*** SINAMICS S120 converter Power Module PM340 input: 200-240 V 1AC, 50/60 Hz output: 3AC 3.9 A (0.75 kW) type of construction: blocksize frame size FSA with built-in line filter internal air cooling Power Module SINAMICS PM340 Power Module for the SINAMICS S120 converter system. The PM340 Power Module in blocksize format features the following connections and interfaces as standard: a network connection, a PM-IF interface for connecting the PM340 Power Module to the CU305 Control Unit, terminals for connecting an external braking resistor, a motor connection by means of screw terminals or bolts and a controller for the safe brake relay for controlling a holding brake. The PM340 Power Module also supplies power to the CU305 Control Unit using an integrated power supply. The integrated braking unit (braking chopper) is rated with the capability to continuously utilize the external braking resistor. The PM340 Power Module is available from 0.12 kW up to 90 kW and in the voltage range from 200 V to 480 V. Frame sizes FSA to FSF of the PM340 Power Module are available both with and without an integrated line filter. Available base components, for example, include line reactors, line filters, motor reactors and brake resistors. SINAMICS – the seamless drive family for every application area.
