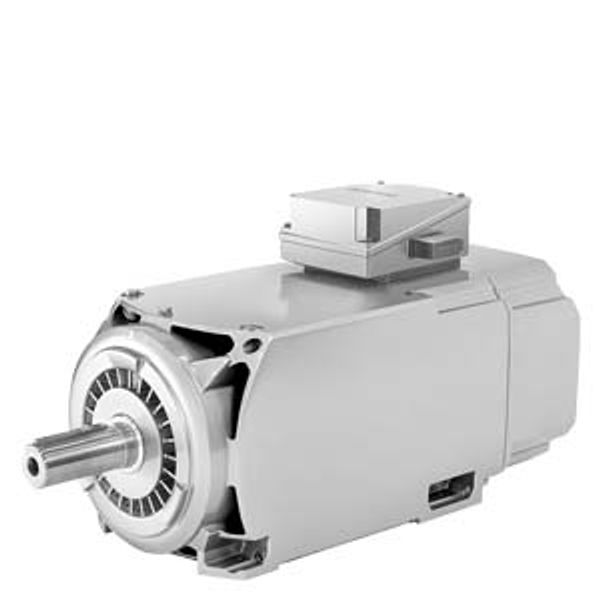

SIMOTICS M compact asynchronous motor 400 r/min, 39.2 kW, 936

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

19 018,74 €

This price is valid until 24.12.25

EAN: 0887621278144

MPN: 1PH8226-1DB13-1EA1

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SIMOTICS M compact asynchronous motor 400 r/min, 39.2 kW, 936
Brand	Siemens
Categories	Standard Electric Motors

Packing details

Packing level 1

0887621278144

Description

SIMOTICS M compact asynchronous motor 400 r/min, 39.2 kW, 936 Nm, 112 A 264 V 500 r/min, 49 kW, 936 Nm, 110 A, 330 V 600 r/min, 59 kW, 939 Nm, 110 A, 395 V forced ventilation direction of air flow NDE-->DE IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B35 WITH FLANGE A550 (IM V35) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: GREATER CANTILEVER FORCES; VIBRATION SEVERITY GRADE A; SHAFT AND FLANGE ACCURACY GR. N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
