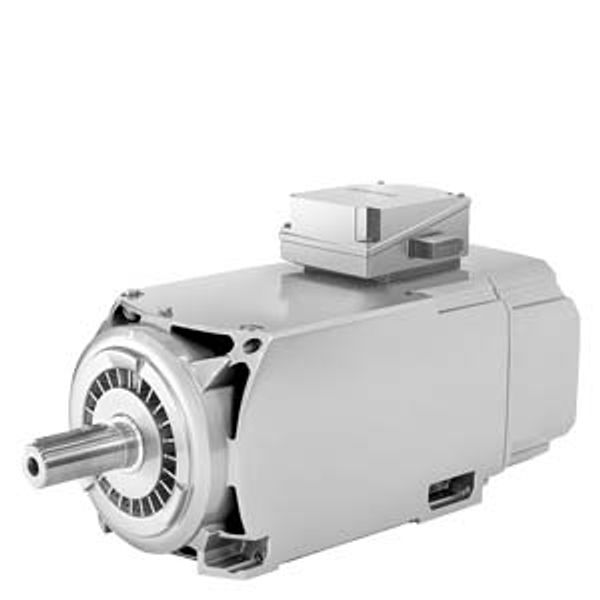

SIMOTICS M compact asynchronous motor 400 r/min, 21.3 kW, 506

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

10 660,24 €

This price is valid until 24.12.25

EAN: 0195125033832

MPN: 1PH8186-1MB00-2AD2

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SIMOTICS M compact asynchronous motor 400 r/min, 21.3 kW, 506
Brand	Siemens
Categories	Standard Electric Motors

Packing details

Packing level 1

0195125033832

Description

SIMOTICS M compact asynchronous motor 400 r/min, 21.3 kW, 506 Nm, 65 A, 268 V 500 r/min, 26.5 kW, 506 Nm, 65 A, 335 V 600 r/min, 32 kW, 509 Nm, 66 A, 400 V forced ventilation direction of air flow DE-->NDE IP55 degree of protection Incremental encoder SIN/COS 1 VPP 2048 S/R with C and D track (encoder IC2048S/R) with temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE A; SHAFT A.FLANGE ACCURACY GR.N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE D-END SIGNAL CONNECTION RIGHT
