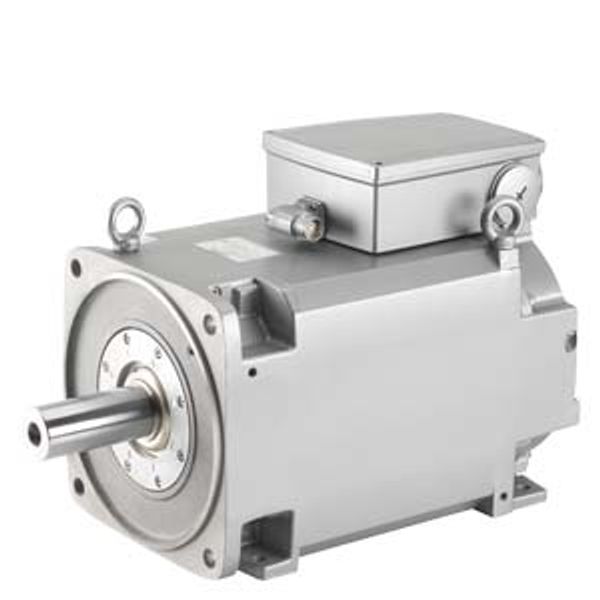

SIMOTICS M compact asynchronous motor 2000 r/min 9.5 kW 45…1PH8103-1DG20-1CB1

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

4 562,48 €

This price is valid until 24.12.25

EAN: 0195125135178

MPN: 1PH8103-1DG20-1CB1

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SIMOTICS M compact asynchronous motor 2000 r/min 9.5 kW 45…1PH8103-1DG20-1CB1
Brand	Siemens
Categories	Standard Electric Motors

Packing details

Packing level 1

0195125135178

Description

SIMOTICS M compact asynchronous motor 2000 r/min 9.5 kW 45 Nm 23.8 A 343 V 2300 r/min 10.9 kW 45 Nm 23.8 A 392 V 2650 r/min 12.5 kW 45 Nm 23.5 A 454 V 2800 r/min 12.8 kW 44 Nm 22.5 A 470 V water cooling degree of protection IP65 Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: S/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END
