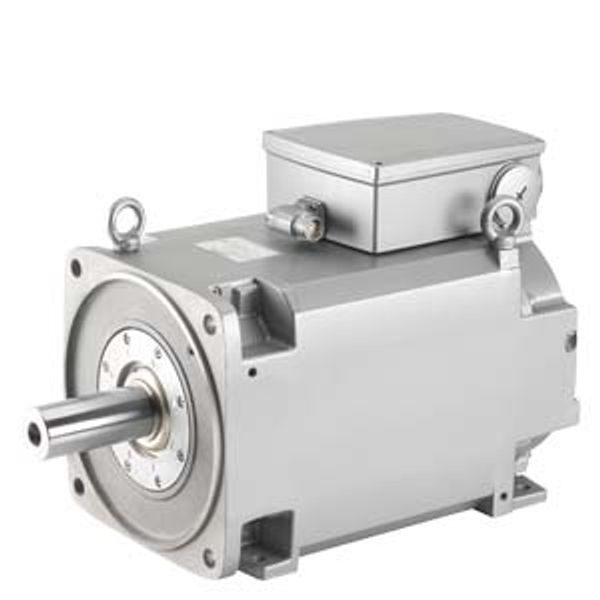

SIMOTICS M compact asynchronous motor 2000 r/min 64 kW 306 Nm 1PH8166-1DG23-1CC1

Order only

Price (excl. VAT):

9 930,37 €

This price is valid until 24.12.25

EAN: 0804766673603

MPN: 1PH8166-1DG23-1CC1

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SIMOTICS M compact asynchronous motor 2000 r/min 64 kW 306 Nm 1PH8166-1DG23-1CC1
Brand	Siemens
Categories	Standard Electric Motors

Packing details

Packing level 1

0804766673603

Description

SIMOTICS M compact asynchronous motor 2000 r/min 64 kW 306 Nm 125 A 376 V 2300 r/min 72 kW 299 Nm 124 A 420 V 2650 r/min 83 kW 299 Nm 125 A 460 V 2800 r/min 87 kW 297 Nm 124 A 500 V water cooling degree of protection IP65 Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface Design IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE S/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT
