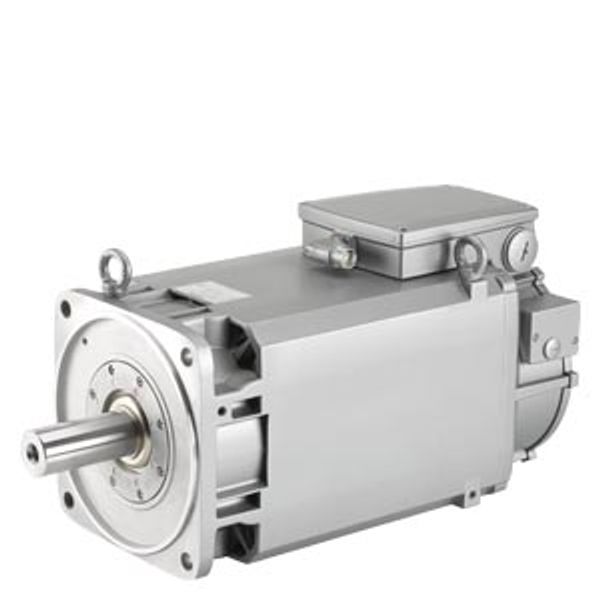

SIMOTICS M compact asynchronous motor 2000 r/min, 24.5 kW 117...1PH8135-1DS13-1MA1

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

6 373,23 €

This price is valid until 24.12.25

EAN: 0195125271173

MPN: 1PH8135-1DS13-1MA1

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SIMOTICS M compact asynchronous motor 2000 r/min, 24.5 kW 117...1PH8135-1DS13-1MA1
Brand	Siemens
Categories	Standard Electric Motors

Packing details

Packing level 1

0195125271173

Description

SIMOTICS M compact asynchronous motor 2000 r/min, 24.5 kW 117 Nm, 51 A, 372 V 5000 r/min, 18.5 kW 47 Nm, 52 A, 425 V 1500 r/min, 18.5 kW 118 Nm, 51 A, 283 V forced ventilation; direction of air flow NDE--> DE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface Design IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: HIGH PERFORMANCE VIBRATION SEVERITY GRADE SPECIAL/B SHAFT AND FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
