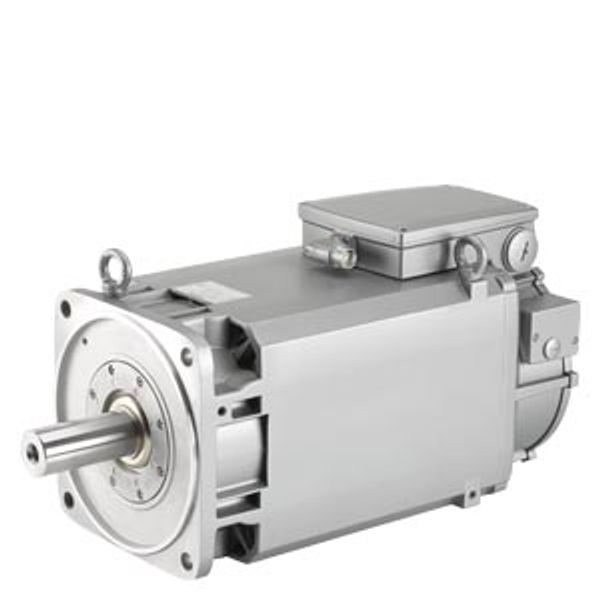

SIMOTICS M compact asynchronous motor 1500 r/min 5.5 kW 35...1PH8103-1SF03-0LA1

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

5 954,86 €

This price is valid until 24.12.25

EAN: 0804766135941

MPN: 1PH8103-1SF03-0LA1

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SIMOTICS M compact asynchronous motor 1500 r/min 5.5 kW 35...1PH8103-1SF03-0LA1
Brand	Siemens
Categories	Standard Electric Motors

Packing details

Packing level 1

0804766135941

Description

SIMOTICS M compact asynchronous motor 1500 r/min 5.5 kW 35 Nm 13.5 A 368 V 1750 r/min 6.3 kW 34 Nm 13.1 A 412 V 2000 r/min 7 kW 33 Nm 12.7 A 460 V 2200 r/min 7.7 kW 33 Nm 12.7 A 480 V forced ventilation; direction of air flow DE--> NDE; IP55 degree of protection Incremental encoder 19-bit Without commutation position (encoder IN19DQ) with DRIVE-CLiQ interface Design IM B35 (IM V15, (IM V35) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
