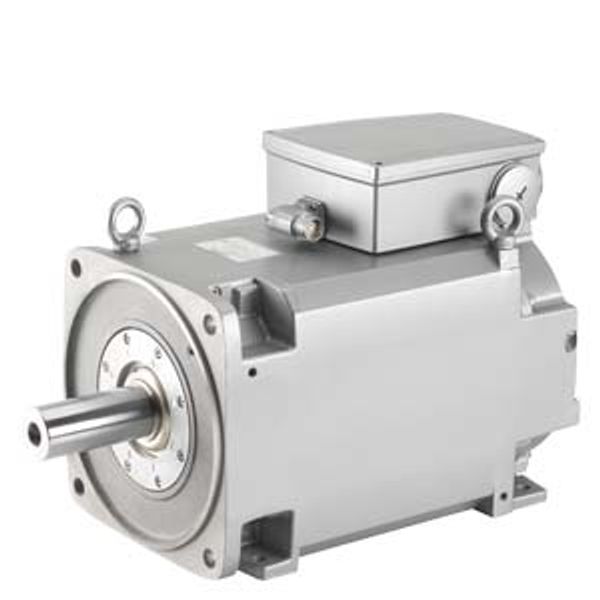

SIMOTICS M compact asynchronous motor 1500 r/min 27 kW 172…1PH8137-1EF22-0GD2

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

6 443,74 €

This price is valid until 24.12.25

EAN: 0195125361249

MPN: 1PH8137-1EF22-0GD2

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SIMOTICS M compact asynchronous motor 1500 r/min 27 kW 172…1PH8137-1EF22-0GD2
Brand	Siemens
Categories	Standard Electric Motors

Packing details

Packing level 1

0195125361249

Description

SIMOTICS M compact asynchronous motor 1500 r/min 27 kW 172 Nm 67 A 315 V 1750 r/min 31.5 kW 172 Nm 67 A 364 V 2000 r/min 36 kW 172 Nm 67 A 415 V 2200 r/min 39 kW 169 Nm 66 A 456 V water cooling degree of protection IP65 ABSOLUTE ENCODER ENDAT 2048 S/R (ENCODER AM2048S/R) with TEMPERATURE SENSOR Pt1000 DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE D-END SIGNAL CONNECTION LEFT
