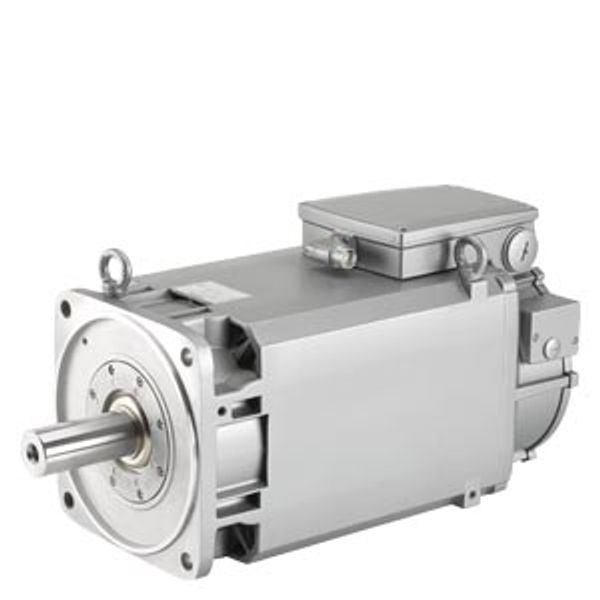

SIMOTICS M compact asynchronous motor 12000 r/min 4.5 kW 3.6 1PH8083-1SV02-0NA1

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

7 053,41 €

This price is valid until 24.12.25

EAN: 0804766955471

MPN: 1PH8083-1SV02-0NA1

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SIMOTICS M compact asynchronous motor 12000 r/min 4.5 kW 3.6 1PH8083-1SV02-0NA1
Brand	Siemens
Categories	Standard Electric Motors

Packing details

Packing level 1

0804766955471

Description

SIMOTICS M compact asynchronous motor 12000 r/min 4.5 kW 3.6 Nm 15.2 A 300 V 13000 r/min 4.8 kW 3.5 Nm 15.2 A 325 V 8 kHz pulse frequency forced ventilation; direction of air flow DE--> NDE; IP55 degree of protection Incremental encoder 19-bit Without commutation position (encoder IN19DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: PREMIUM PERFORMANCE VIBRATION SEVERITY GRADE SPECIAL/B SHAFT AND FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
