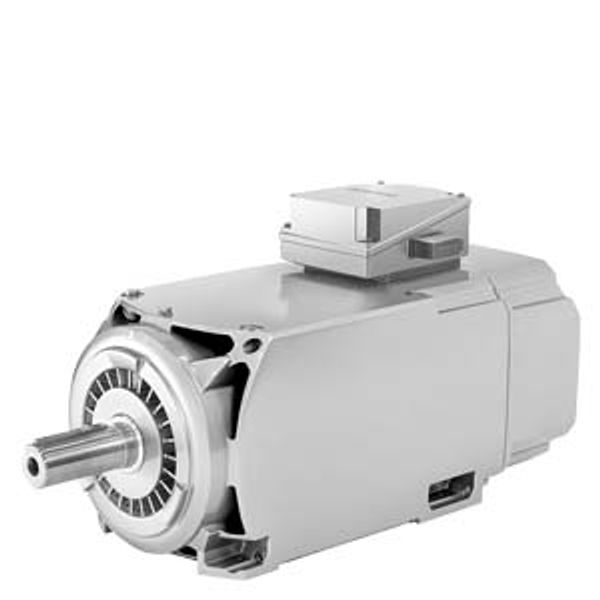

SIMOTICS M compact asynchronous motor 1000 r/min, 74 kW 707

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

14 714,48 €

This price is valid until 24.12.25

EAN: 0195125326651

MPN: 1PH8186-1DD32-1BC1

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SIMOTICS M compact asynchronous motor 1000 r/min, 74 kW 707
Brand	Siemens
Categories	Standard Electric Motors

Packing details

Packing level 1

0195125326651

Description

SIMOTICS M compact asynchronous motor 1000 r/min, 74 kW 707 Nm, 156 A, 340 V 1150 r/min, 85 kW 706 Nm, 154 A, 390 V 1350 r/min, 98 kW 693 Nm, 152 A, 450 V open-circuit ventilation direction of air flow DE-->NDE degree of protection IP23 Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B5 WITH FLANGE A450 (IM V3) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION RIGHT
