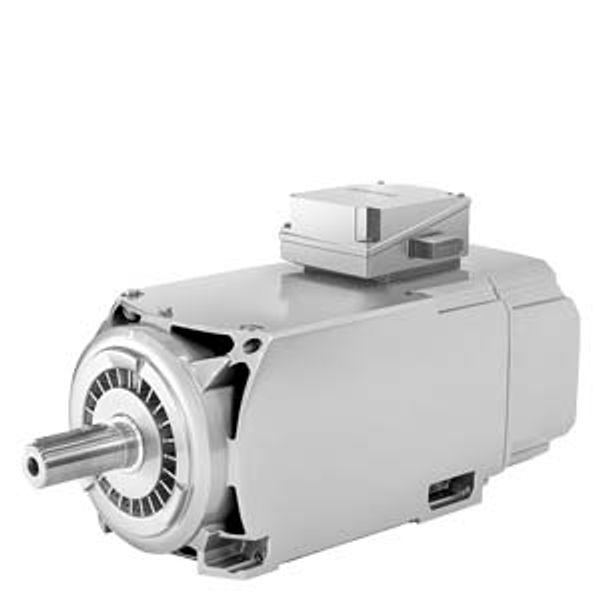

SIMOTICS M compact asynchronous motor 1000 r/min, 39 kW, 372

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

8 571,83 €

This price is valid until 24.12.25

EAN: 0195125043251

MPN: 1PH8184-1MD13-2AB2

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SIMOTICS M compact asynchronous motor 1000 r/min, 39 kW, 372
Brand	Siemens
Categories	Standard Electric Motors

Packing details

Packing level 1

0195125043251

Description

SIMOTICS M compact asynchronous motor 1000 r/min, 39 kW, 372 Nm, 87 A, 340 V 1150 r/min, 44 kW, 365 Nm, 86 A, 390 V 1350 r/min, 50 kW, 354 Nm, 84 A, 450 V forced ventilation direction of air flow NDE-->DE IP55 degree of protection Incremental encoder SIN/COS 1 VPP 2048 S/R with C and D track (encoder IC2048S/R) with temperature sensor Pt1000 Design IM B35 with flange A450 (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE A; SHAFT A.FLANGE ACCURACY GR.N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END
