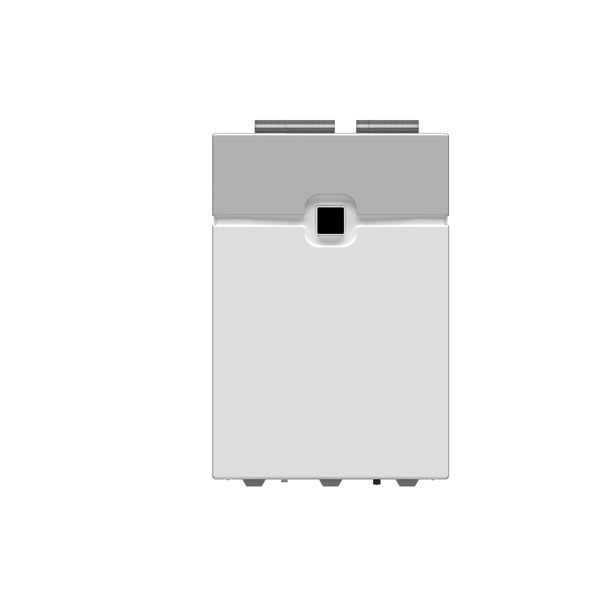

SABIK 350 R8
Order only
Price (excl. VAT):
2 213,26 €
EAN: 8413893590251
MPN: 5153139200
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | SABIK 350 R8 |
| Brand | S&P |
| Categories |
Residential Heat Recovery Units
|
| Harmonized System Code | 8414 5100 00 |
| Width | 700 mm |
| Height | 1046 mm |
| Depth | 603 mm |
| Suitable for wall mounting | Yes |
| Housing material | Steel coated |
| Supporting protocol for Modbus | Yes |
| With thermal protection | Yes |
| With internal carbon dioxide (CO2) sensor | Yes |
| Suitable for (extra) carbon dioxide (CO2) sensor | Yes |
| With internal humidity (RH) sensor | Yes |
| Suitable for (extra) humidity (RH) sensor | Yes |
| With wired control unit | Yes |
| Suitable for wired control unit | Yes |
| With zone controller | Yes |
| Suitable for zone controller | Yes |
| With constant volume flow control | Yes |
| With constant pressure control | Yes |
| Max. air volume at 100 Pa | 372.489 m³/h |
| Max. air volume at 150 Pa | 345.899 m³/h |
| Max. air volume at 200 Pa | 319.899 m³/h |
| Max. air volume at 250 Pa | 292.115 m³/h |
| Max. air volume at 300 Pa | 265.115 m³/h |
| Left/right orientation reversible | Yes |
| Type of speed control | Other |
| Suitable for ceiling mounting | No |
| With heating element | Yes |
| With bypass | No |
| Nominal duct diameter | 150 mm |
| Suitable for wireless remote control | No |
| With digital display | No |
| Thermal efficiency according to EPN standard | 85 % |
| Residential connection, underside | No |
| Residential connection, left side | No |
| Residential connection, right side | No |
| Residential connection, top | Yes |
| Roof connection, side | No |
| Roof connection, top | No |
| Suitable for central heating boiler connection | No |
| Suitable for floor mounting | No |
Packing details
| Packing level 1 | 8413893590251 |
