RV inline coupler
Order only
EAN: 5901769010970
MPN: 45.650
Package: 1
No price options are available.
Technical Information
| Item condition | New |
| Manufacture name | RV inline coupler |
| Brand | Elektro-Plast |
| Categories |
Busbar Systems & Accessories
|
| ETIM | EC000215 |
| Insulated | Yes |
| Rated permanent current Iu | 63 A |
| Number of poles | 3 |
Packing details
| Packing level 1 | 5901769010970 |
Other Technical data
| Number of phases | 3 |
| Cross section | 10 mm² |
| Length | 150 mm |
| Conditioned rated short-circuit current Iq | 0 kA |
| Width in number of modular spacings | 3 |
| Rated surge voltage | 2.5 kV |
| Type of electric connection | Pin |
| Rated short-time withstand current lcw | 0.063 kA |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | Yes |
| Suitable for number of devices | 2 |
| Max. rated operation voltage Ue | 400 V |
| Module width | 17.8 mm |
| Can be cut to size | No |
Description

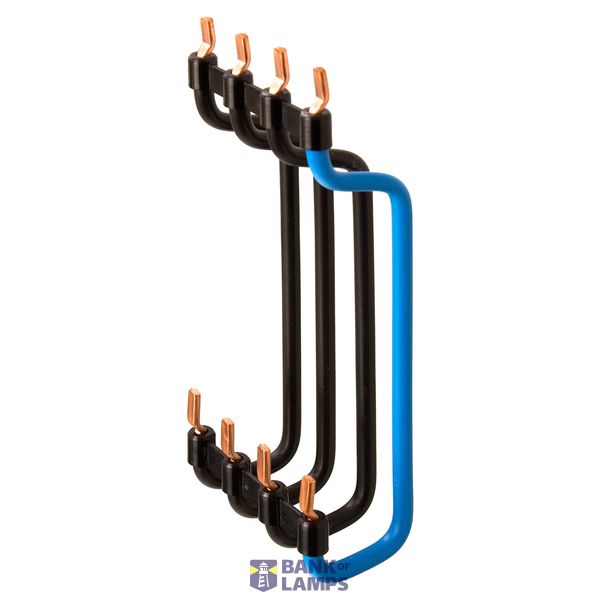

The RV row connector is used for quick and convenient installation of equipment placed on two rows of TH rails. Its stable construction and profiled connector wires enable quick and aesthetic assembly and disassembly of the connection.
