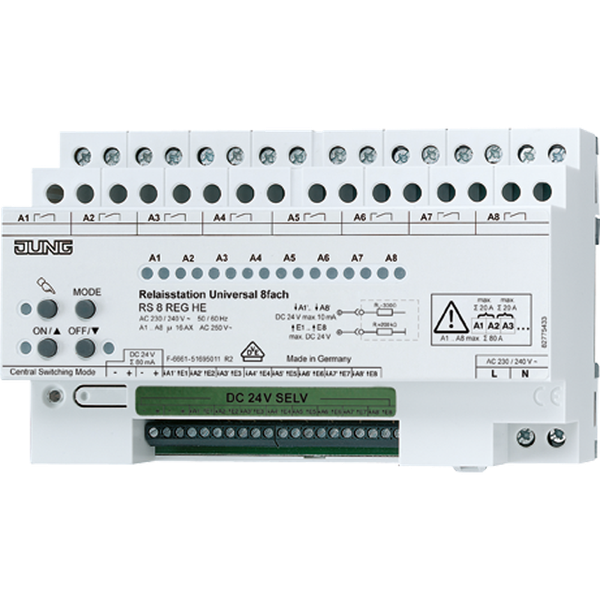

Relay station universal, 8-gang RS8REGHE

Order only

Price (excl. VAT):

341,66 €

This price is valid until 31.12.25

EAN: 4011377036345

MPN: RS8REGHE

Box: 1

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Relay station universal, 8-gang RS8REGHE
Brand	Jung
Categories	Assembly Accessories and Parts
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 4900 00
Mounting method	DIN rail
Function	Partially electronic
Rated current	0 A
Supply voltage	230-240 V

Packing details

Packing level 1

4011377036345

Other Technical data

Built-in depth	0 mm
Width in number of modular spacings	8
Control voltage 1	24 V
Control voltage 2	24 V
Type of control voltage 1	DC
Type of control voltage 2	DC
Voltage type of supply voltage	AC
Max. switching current (cos phi = 0.6)	16 A
Max. incandescent lamp load	3000 W
Max. load fluorescent lamp	1000 VA
Max. load fluorescent lamp (Duo circuit)	2300 VA
Max. load fluorescent lamp (parallel compensated)	1160 VA
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	8
Number of contacts as change-over contact	0

Downloads

Product data sheet Deep link REACH

Description

Relay station universal, 8-gang RS8REGHE.Controls load circuits in a switch or power system, integrating electronic and mechanical switching.Designed for DIN rail systems with digital control inputs. Width:8 modular spacings.Built-in depth unspecified.Function:Partially electronic operation.Normally open contacts:8.Control voltage 1:DC, range 24 V.Control voltage 2:DC, range 24 V.Supply voltage operates on AC between 230 V to 240 V input range.Load capacity is high;supports up to a max of incandescent lamp loads at 3000 W, fluorescent lamps at maximum of up to 1000 VA (single), duo circuit mode allows up to max load of fluorescent at approx.~2300 VA parallel compensated ~1160 VA. Switching capability handles currents with cos phi approximately set for operations around ~16 A effectively under specifications designed constraints setup dynamics **
