PV generator junction box 6 x PV string with fuses for 1 x inverter input (Mi PV 3311)

Name: PV generator junction box 6 x PV string with fuses for 1 x inverter input (Mi PV 3311)
Brand: HENSEL
Price: 793.120 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

793,12 €

This price is valid until 24.12.25

EAN: 4012591116936

MPN: 20001250

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	PV generator junction box 6 x PV string with fuses for 1 x inverter input (Mi PV 3311)
Brand	HENSEL
Categories	Surface Mounted Junction Boxes
Country of origin	DE
Harmonized System Code	8537 1098 00
Halogen free	Yes
Equipped with	Other
Rated insulation voltage Ui	1000 V
Sealable	No
Weatherproof	Yes
Degree of protection (IP)	IP65
Inlet from the rear	No

Packing details

Packing level 1

4012591116936

Other Technical data

Mounting method	Wall-/ceiling mounting
Colour	Grey

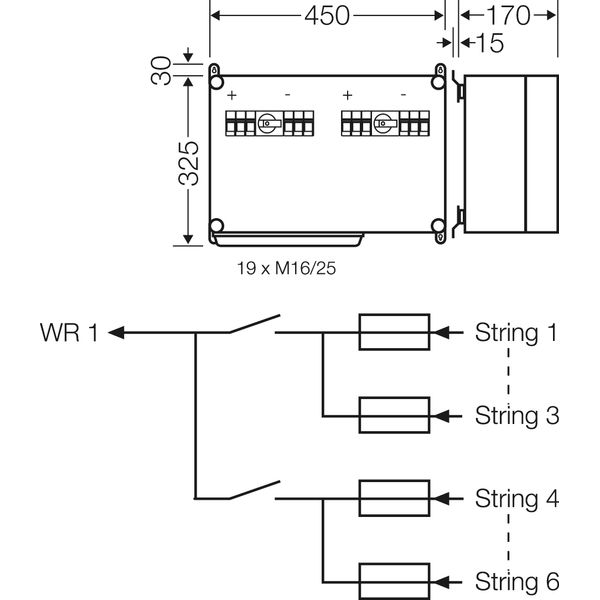

Width	450 mm
Depth	170 mm
Shape	Other
Surface protection	Untreated
Length	325 mm
Circuit integrity	None
Operating temperature	-5-40 °C
Material	Plastic
Explosion-tested version	No
Cover attachment	Screwed
With screening	No
For Ex-zone gas	None
Tackable	No
Type of housing feed-through	Other
For Ex-Zone dust	None
Cover model	Other
Castable	No
With casting compound	No

Description

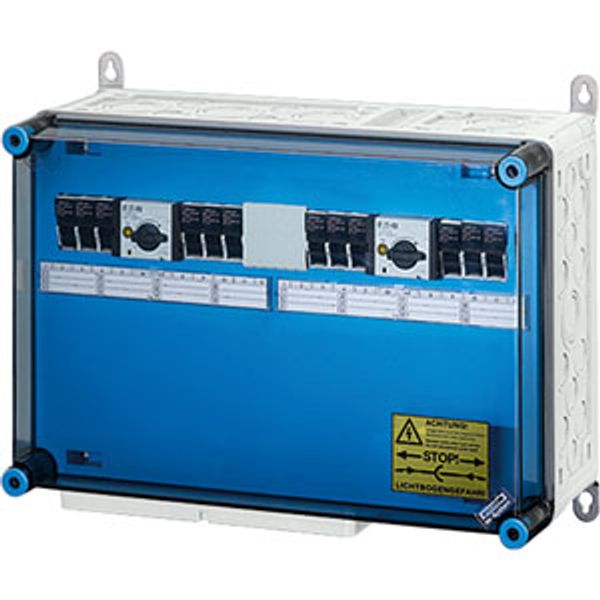

Generator junction box for PV systems up to 1000 V d.c. according to IEC 61439, completely assembled and ready for connecton.Enclosures made of high quality thermoplastics are totally insulated, degree of protection IP 65. As required, the PV generator junction boxes are equipped with surge arresters, generator disconnect switches and string overload. They are suitable for unprotected outdoor installation and are UV-resistant. Wall mounting via external brackets made of stainless steel. PV-Generator junction box with string overload and 2 DC generator disconnect switches. 6 x PV string for 1 x inverter input. Per 6 x fuse holders + and - for cylindrical fuse links. Lid fasteners for tool operation.
