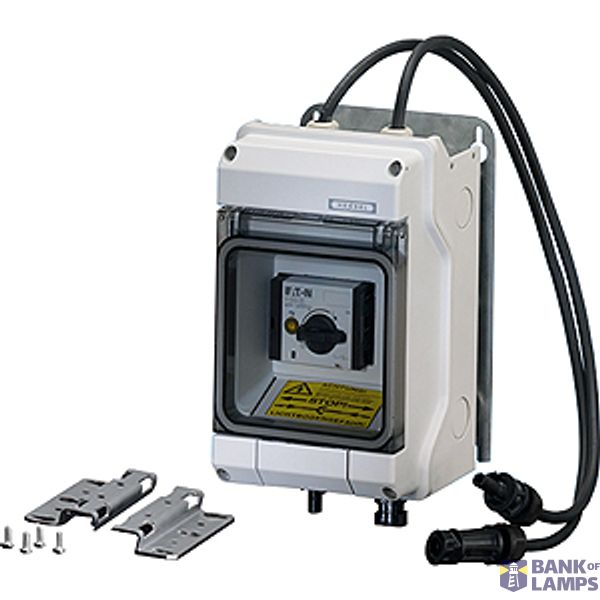

PV generator junction box 1xPV string for 1xinverter input with disconnect switch (61001076)

Name: PV generator junction box 1xPV string for 1xinverter input with disconnect switch (KV PV 2211)
Brand: HENSEL
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	PV generator junction box 1xPV string for 1xinverter input with disconnect switch (KV PV 2211)
Brand	HENSEL
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 1000 00
ETIM	EC002600
Rated insulation voltage Ui	1000 V
Degree of protection (IP)	IP65

Packing details

Packing level 1

4012591115212

Other Technical data

Mounting method	Wall-/ceiling mounting
Surface protection	Untreated
Operating temperature	-5-40 °C
Explosion-tested version	No
For Ex-zone gas	None
For Ex-Zone dust	None

Description

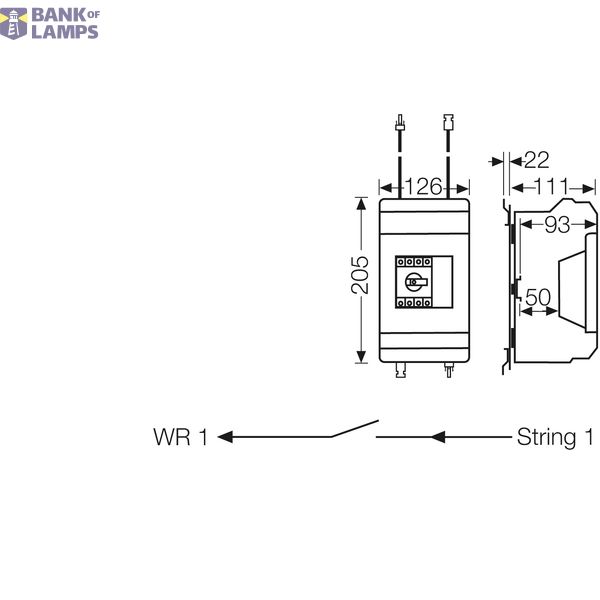

Generator junction box for PV systems up to 1000 V d.c. according to IEC 61439-1, completely assembled and ready for connection. Enclosures made of high quality thermoplastics are totally insulated, degree of protection IP 65. As required, the KV PV generator junction boxes are equipped with surge arresters or generator disconnect switches. They are suitable for unprotected outdoor installation and are UV-resistant. With stainless steel mounting plate for wall and post installations. PV-Generator junction box with DC generator disconnect switch. 1 x PV string for 1 x inverter input. The plug-in connectors are compatible with MC4. With hinged flap for hand operation. Lock for flap and sealing set in accessories.
