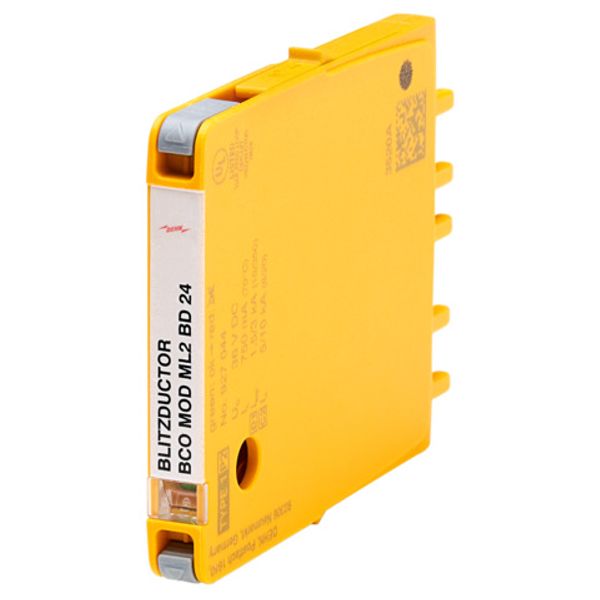

Protection module for 1 pair BLITZDUCTORconnect w. fault indication
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
131,59 €
EAN: 4013364410169
MPN: 927044
Package: 1
Estimate delivery time at our warehouse (approx.):
2 weeks
Technical Information
| Item condition | New |
| Manufacture name | Protection module for 1 pair BLITZDUCTORconnect w. fault indication |
| Brand | Dehn |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin | DE |
| Harmonized System Code | 8536 3010 00 |
| Degree of protection (IP) | IP20 |
| Nominal voltage DC | 24 V |
Packing details
| Packing level 1 | 4013364410169, 4013364410169 |
Other Technical data
| Mounting method | On basic element |
| Lightning impulse current (10/350 µs) | 3 kA |
| Number of conductors (without earthing) | 2 |
| Limiting frequency | 5.8 MHz |
| Max. continuous voltage AC | 25.4 V |
| Nominal discharge surge current (8/20) | 10 kA |
| Nominal load current | 0.75 A |
| Voltage protection level core/core | 57 V |
| Voltage protection level core/earth | 600 V |
| Max. continuous voltage DC | 36 V |
| Pro-active thermo-control | Yes |

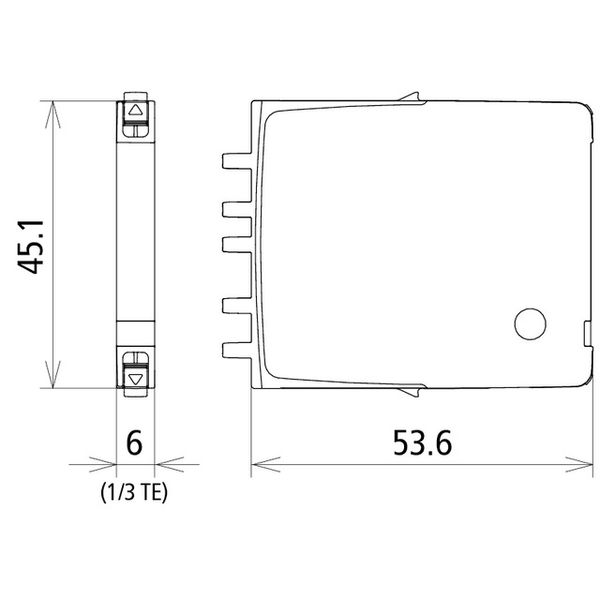

| Assembly width | 6 mm |
| Earthing via | Other |
Downloads
Description

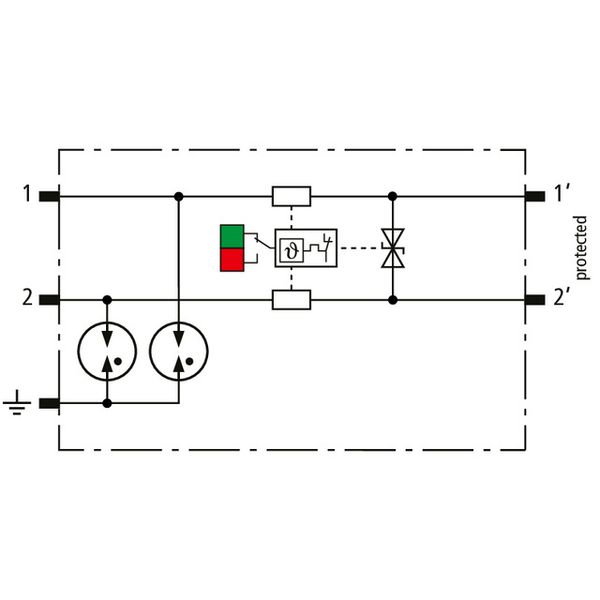

Protection module with a width of 6 mm for BLITZDUCTORconnect combined arrester with status inidication for protecting one pair of unearthed balanced interfaces.
