Combined arrester protection module for 1 pair BLITZDUCTORconnect with

Name: Combined arrester protection module for 1 pair BLITZDUCTORconnect with
Brand: Dehn
Price: 131.590 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

131,59 €

This price is valid until 31.12.25

EAN: 4013364473010

MPN: 927014

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	Combined arrester protection module for 1 pair BLITZDUCTORconnect with
Brand	Dehn
Categories	Surge Protection Devices (SPD)
Country of origin	DE
Harmonized System Code	8536 3010 00
Degree of protection (IP)	IP20

Packing details

Packing level 1

4013364473010, 4013364473010

Other Technical data

Mounting method	DIN rail (top hat rail) 35 mm
Lightning impulse current (10/350 µs)	3 kA
Number of conductors (without earthing)	2
Max. continuous voltage AC	23.3 V
Nominal discharge surge current (8/20)	10 kA
Nominal load current	0.1 A
Max. continuous voltage DC	33 V
Pro-active thermo-control	Yes
Assembly width	6 mm
Earthing via	Other

Downloads

Product data sheet Dimensioned drawing Deep link REACH

Description

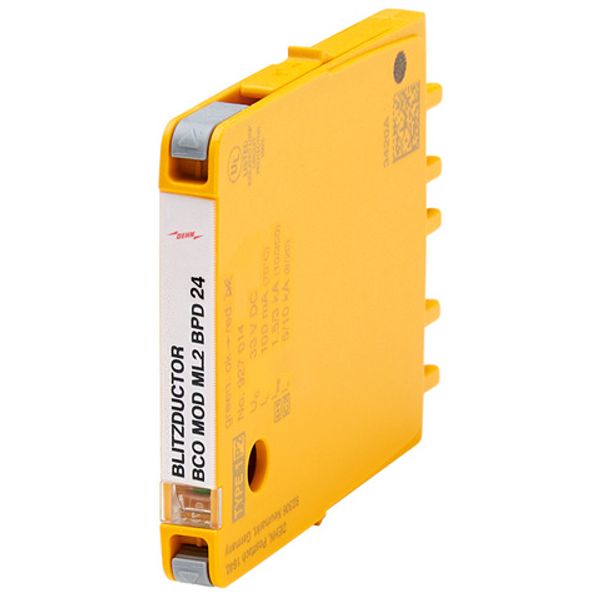

Combined arrester protection module with a width of 6 mm for BLITZDUCTORconnect with status indication for protecting one pair in 24 V DC systems. Also suitable for use with an earthed negative pole. Integrated PTC resistors allow for secure resetting of the arrester after interference in the system circuit with short-circuit currents of up to 40 A.
