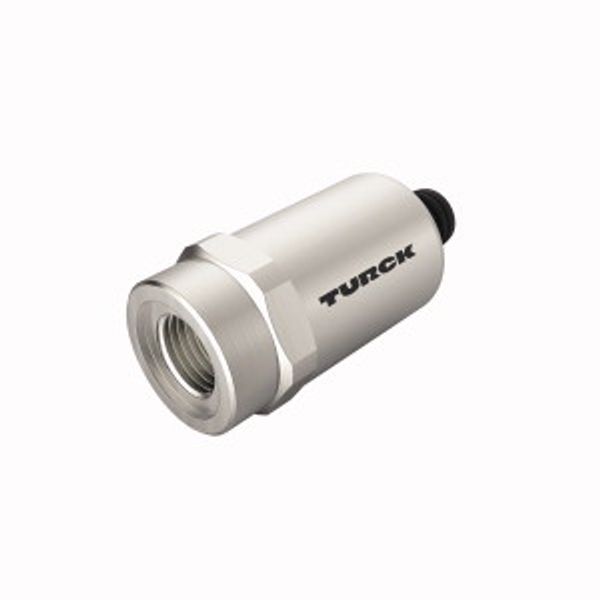

Pressure Transmitter IO-Link with Two Switching Outputs PT6R-2001-IOL-H1141
Order only
Price (excl. VAT):
241,34 €
EAN: 4047101556704
MPN: 100029959
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Pressure Transmitter IO-Link with Two Switching Outputs PT6R-2001-IOL-H1141 |
| Brand | TURCK |
| Categories |
Pressure Sensors
|
| Country of origin* | CH |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9026 2020 00 |
| Switch off pressure | 6 bar |
| Bursting pressure | 60 bar |
| Engaging pressure | 0 bar |
| Max. test pressure | 30 bar |
| Medium temperature | -40 °C |
Packing details
| Packing level 1 | 4047101556704, 4047101556704 |
Other Technical data
| Initial setting | 0 hPa |
| End setting | 6000 hPa |
| Type of electric connection | Other |
| Degree of protection (IP) | IP67 |
| Initial value measuring range pressure | 0 Pa |
| Rated voltage Ue at DC | 18 V |
| End value measuring range pressure | 600000 Pa |
Downloads
Description

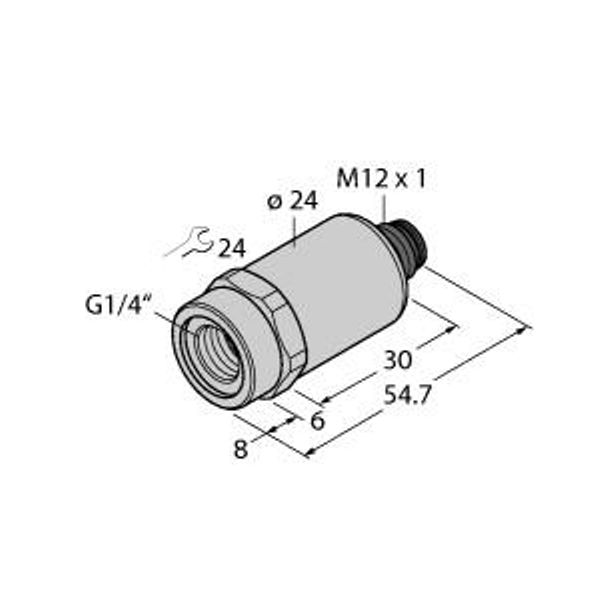

Druktransmitter, I/O-link met 2 schakeluitgangen, Bedrijfsspanning 18…33 VDC, Volledig gelaste metalen meetcel, drukbereik 0 … 6 bar rel., 18…33 VDC, N.O./N.C., 2x PNP/NPN-uitgangen, IO-link, Procesaansluiting G1/4", binnendraad, vooraan afdichtend, Apparaat met stekker, M12 × 1
