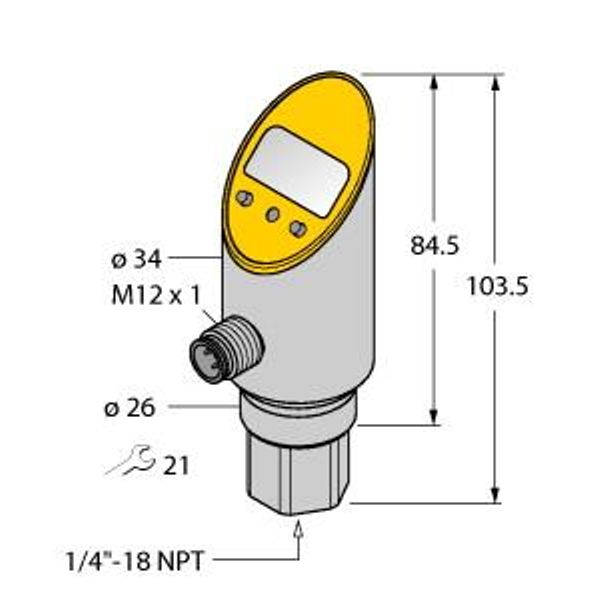

Pressure sensor With Analog Output and PNP/NPN Transistor Switching Output PS100R-302-LI2UPN8X-H1141
Order only
Price (excl. VAT):
617,53 €
EAN: 4047101204070
MPN: 6833344
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Pressure sensor With Analog Output and PNP/NPN Transistor Switching Output PS100R-302-LI2UPN8X-H1141 |
| Brand | TURCK |
| Categories |
Pressure Sensors
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9026 2020 00 |
| Switch off pressure | 100 bar |
| Bursting pressure | 420 bar |
| Engaging pressure | 0 bar |
| Max. test pressure | 420 bar |
| Medium temperature | -40 °C |
Packing details
| Packing level 1 | 4047101204070, 4047101204070 |
Other Technical data
| Initial setting | 0 hPa |
| End setting | 100000 hPa |
| Type of electric connection | Other |
| Degree of protection (IP) | IP67 |
| Initial value measuring range pressure | 0 Pa |
| Rated voltage Ue at DC | 18 V |
| End value measuring range pressure | 10000000 Pa |
| Adjustable current range | 4 A |
Downloads
Description
druksensor, Met analoge uitgang en een transistorschakeluitgang pnp/npn, uitgang 2 programmeerbaar als schakeluitgang, Bedrijfsspanning 18…30 VDC, procesaansluiting vast - geen draaibare behuizing, aflezen van de ingestelde waarden mogelijk zonder werktuig, programmeerbeveiliging door verzonken toets en Lock-functie, permanente weergave van de drukeenheid (bar, psi, kPa, MPa, misc), drukpiekgeheugen, drukbereik 0 … 100 bar rel.
