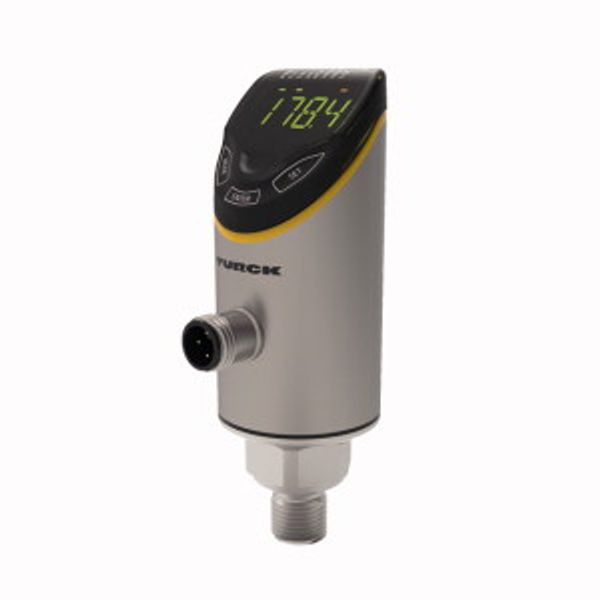

Pressure Sensor Absolute Pressure: 0…10 Bar PS510-10A-03-LI2UPN8-H1141
Order only
Price (excl. VAT):
468,35 €
EAN: 4047101484472
MPN: 100003729
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Pressure Sensor Absolute Pressure: 0…10 Bar PS510-10A-03-LI2UPN8-H1141 |
| Brand | TURCK |
| Categories |
Pressure Sensors
|
| Country of origin* | PL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9026 2020 00 |
| Switch off pressure | 10 bar |
| Bursting pressure | 50 bar |
| Engaging pressure | 0 bar |
| Suitable as 2-point controller | No |
| Suitable as limiter | No |
| Suitable as guard | No |
| Medium temperature | -40 °C |
Packing details
| Packing level 1 | 4047101484472, 4047101484472 |
Other Technical data
| With manual on/off switch | No |
| Initial setting | 0 hPa |
| End setting | 10000 hPa |
| Type of electric connection | Other |
| Explosion-proof | No |
| Degree of protection (IP) | IP66 |
| Initial value measuring range pressure | 0 Pa |
| Rated voltage Ue at DC | 18 V |
| Electronic version | No |
| End value measuring range pressure | 1000000 Pa |
| With hand operation | No |
| Adjustable current range | 4 A |
Downloads
Description
Druksensor, Absolute druk: 0…10 bar, Bedrijfsspanning 18…33 VDC, 4-cijferig, tweekleurig 12-segment display 180° draaibaar, Draaibare behuizing na montage van de procesaansluiting, Metalen meetcel, 18…33 VDC, N.O./N.C., PNP/NPN‐uitgang, analoge uitgang (stroom/spanning), IO-link, Procesaansluiting buitendraad 1/4" NPT, Apparaat met stekker, M12 × 1
