pre-assembled connecting cable Cca Socket/open-ended gray
Order only
Price (excl. VAT):
32,23 €
EAN: 4055144101263
MPN: 771-9395/166-503
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | pre-assembled connecting cable Cca Socket/open-ended gray |
| Brand | WAGO |
| Categories |
Patch Cable
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8544 4290 00 |
| Nominal cross section conductor | 1.5 mm² |
| Rated current | 16 A |
| Rated voltage | 400 V |
| Number of poles | 5 |
| Degree of protection (IP) | IP20 |
| Type of finished cable | Other |
| Type side 1 | Bus |
| Type side 2 | Free conductor end |
Packing details
| Packing level 1 | 4055144101263 |
Other Technical data
| Halogen free | Yes |
| Cable type | Other |
| Colour housing | Black |
| Locking mechanism | Separate |
| Total length | 5000 mm |
| Colour outer sheath | Grey |
| Cable diameter | 7.8-9.3 mm |
| Surface treatment contacts | Other |
| Pollution degree | 3 |
| Mechanical coding | Yes |
| Rated surge voltage | 6 kV |
| Continuity resistor | 3 mOhm |
| Pole codification | 1, 2, 3, 4, 5 |
| Colour coding/contact insert | Grey |
| Fire load | 0 kWh |
| Strip length | 9 mm |
| Dismantle length | 55 mm |
| Insulating piece permanent temperature-resistant | 105 °C |
| Conductor end treatment | Ultrasonic compressed wire ends |
| Cable permanent temperature-resistant to | 70 °C |
| Max. operating temperature at conductor | 75 °C |
| Reaction-to-fire according to EN 13501-6: Class | Cca |
Description

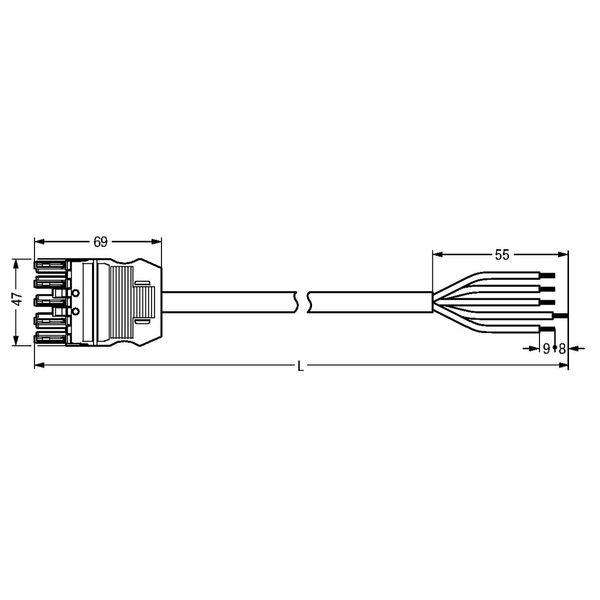

pre-assembled connecting cable Cca Socket/open-ended 5-pole Cod. B 5 m 1,50 mm²
