pre-assembled connecting cable Cca Plug/open-ended blue
Order only
Price (excl. VAT):
7,60 €
EAN: 4055143784696
MPN: 891-8382/266-301
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | pre-assembled connecting cable Cca Plug/open-ended blue |
| Brand | WAGO |
| Categories |
Patch Cable
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8544 4290 00 |
| Nominal cross section conductor | 1.5 mm² |
| Rated current | 16 A |
| Rated voltage | 250 V |
| Number of poles | 2 |
| Degree of protection (IP) | IP20 |
| Type of finished cable | Connecting cable |
| Type side 1 | Plug |
| Type side 2 | Free conductor end |
Packing details
| Packing level 1 | 4055143784696 |
Other Technical data
| Halogen free | Yes |
| Cable type | H05Z1Z1-F |
| Colour housing | Black |
| Locking mechanism | Separate |
| Total length | 3000 mm |
| Colour outer sheath | Black |
| Cable diameter | 6.8-8.6 mm |
| Surface treatment contacts | Other |
| Pollution degree | 3 |
| Mechanical coding | Yes |
| Rated surge voltage | 4 kV |
| Continuity resistor | 3 mOhm |
| Colour coding/contact insert | Blue |
| Strip length | 9 mm |
| Dismantle length | 32 mm |
| Insulating piece permanent temperature-resistant | 105 °C |
| Conductor end treatment | Ultrasonic compressed wire ends |
| Cable permanent temperature-resistant to | 70 °C |
| Max. operating temperature at conductor | 75 °C |
| Reaction-to-fire according to EN 13501-6: Class | Cca |
Description

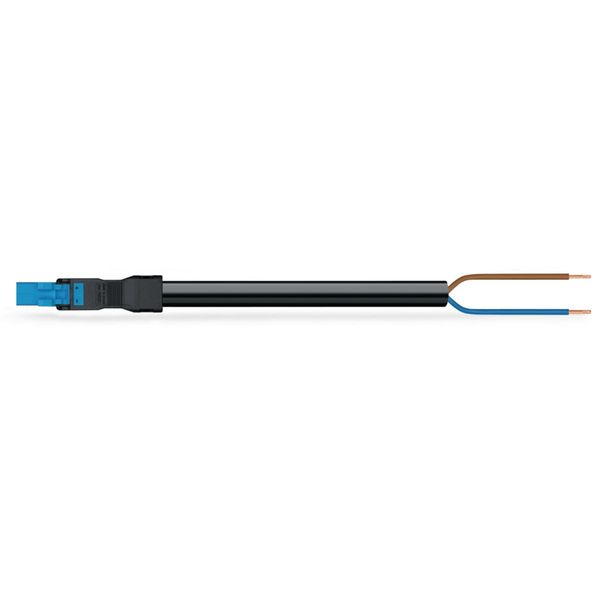

pre-assembled connecting cable Cca Plug/open-ended 2-pole Cod. I 3 m 1,50 mm² blue
