Power Cable, PUR Connection Cable   AIDA-GP-52-10M image 1

Power Cable, PUR Connection Cable  AIDA-GP-52-10M

Order Only
Price (excl. VAT):
155,53 €
This price is valid until 24.12.25
EAN: 4047101418132
MPN: 6936455
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Power Cable, PUR Connection Cable  AIDA-GP-52-10M
Brand TURCK
Categories Circular Connectors
Country of origin DE
Harmonized System Code 8544 4290 00
Rated voltage 24 V
Contact type Pin
Ambient temperature -40 °C
Degree of protection (IP), mounted IP65/IP67
Rated current In 16 A

Packing details

Packing level 1 4047101418132, 4047101418132

Other Technical data

Housing material Zinc
Material of contact surface Gold
Pollution degree 3
Type of housing Straight
With protective conductor No

Downloads

Description

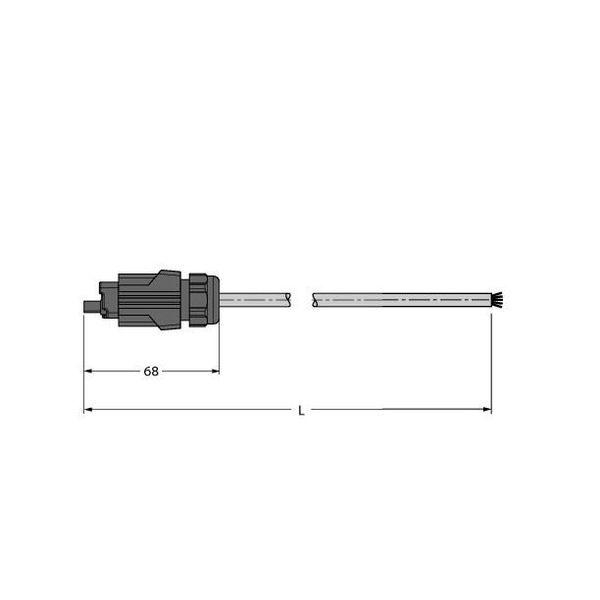

Voedingsleiding / PUR, Aansluitkabel, Nominale spanning 24 V, Kabellengte 10 m, Push-Pull Power connector, 4-polig + PE, Open einde, voedingskabel: 5 x 2.5 mm2, mantelmateriaal: PUR, kleur: grijs, manteldiameter: 10 mm, geleideropbouw: fijndradig conform VDE 0295, klasse 5 / IEC 60228 CI.5, oliebestendig, slijtagebestendig en bestand tegen inkerven, hydrolysebestendig en bestand tegen microben, RoHS-conform, AIDA-conform, beschermingsklasse IP65 en IP67, kabellengte: 10 meter
