Plug;with strain relief housing;5-pole;blue
In stock: No
Vendor stock: No
Minimal order quantity: 25
Price (excl. VAT):
4,06 €
Subtotal: 101,50 €
MOQ: 25
EAN: 4050821223009
MPN: 770-1115/022-000
Box: 25
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Plug;with strain relief housing;5-pole;blue |
| Brand | WAGO |
| Categories |
Plug-in Connectors
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Model | Plug |
| Connection type | Spring clamp connection |
| Locking mechanism | Separate |
| Rated current | 25 A |
| Rated voltage | 400 V |
| Number of poles | 5 |
| Length | 75.9 mm |
| Degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 4050821223009 |
Other Technical data
| Width | 54.6 mm |
| Halogen free | No |

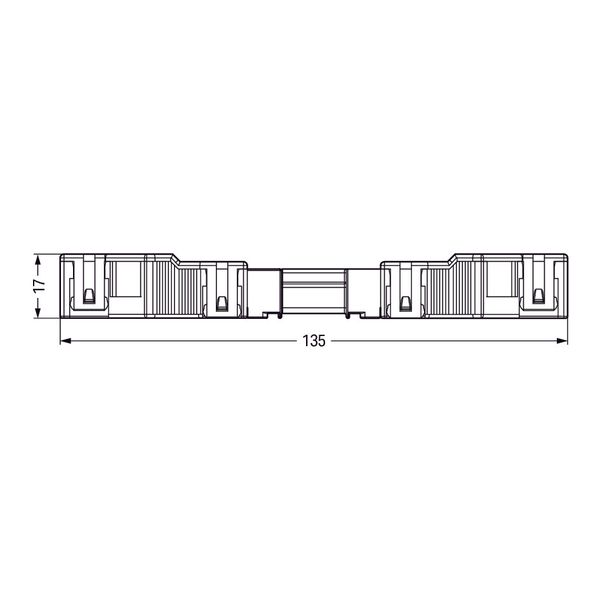

| Height | 17 mm |
| With strain relief | Yes |
| Housing material | Polyamide (PA) |
| Cable diameter | 9-13 mm |
| Surface treatment contacts | Other |
| Pollution degree | 3 |
| Mechanical coding | Yes |
| Rated surge voltage | 6 kV |
| Continuity resistor | 3 mOhm |
| Contact material | Other |
| Number of connections per pole | 2 |
| Colour coding/contact insert | Blue |
| Connection cross section (fine-strand) | 0.5-4 mm² |
| Connection cross section (solid-core) | 0.5-4 mm² |
| Max. continuous temperature resistance contact part | 85 °C |
| Max. continuous temperature resistance strain relief | 105 °C |
Description
Plug | with strain relief housing | 5-pole | Cod. I
