WAGO

Plug with strain relief housing 3-pole white

In stock: No Vendor stock: No Minimal order quantity: 25
Price (excl. VAT):
2,81 €
This price is valid until 31.12.25
Subtotal: 70,25 € MOQ: 25
EAN: 4044918254120
MPN: 770-133
Package: 1
Box: 25
Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition New
Manufacture name Plug with strain relief housing 3-pole white
Brand WAGO
Categories Plug-in Connectors
Country of origin DE
Harmonized System Code 8536 6990 00
Model Plug
Connection type Spring clamp connection
Locking mechanism Separate
Rated current 25 A
Rated voltage 250 V
Number of poles 3

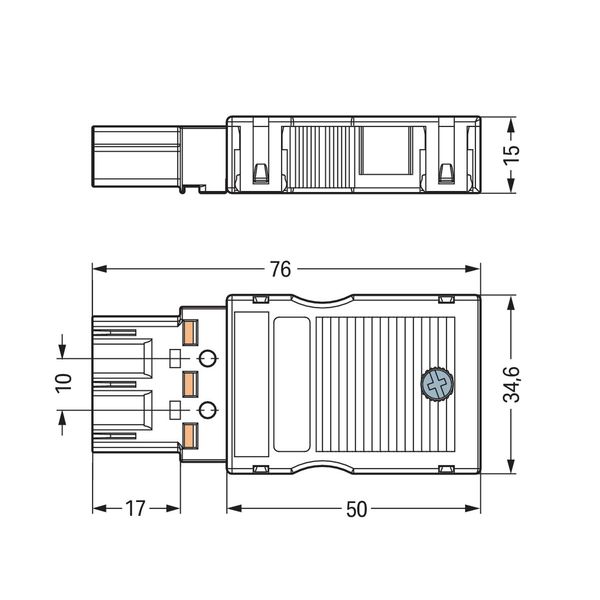

Length 76 mm
Degree of protection (IP) IP20
Pole codification L, N, PE

Packing details

Packing level 1 4044918254120
Packing level 2 4044918254120

Other Technical data

Width 34.6 mm
Halogen free No
Height 15 mm
With strain relief Yes
Housing material Polyamide (PA)
Cable diameter 8-11.5 mm
Surface treatment contacts Other
Pollution degree 3
Mechanical coding Yes
Rated surge voltage 4 kV
Continuity resistor 3 mOhm
Contact material Other
Number of connections per pole 2
Colour coding/contact insert White
Connection cross section (fine-strand) 0.5-4 mm²
Connection cross section (solid-core) 0.5-4 mm²
Max. continuous temperature resistance contact part 85 °C
Max. continuous temperature resistance strain relief 105 °C

Description

Plug with strain relief housing 3-pole 4,00 mm² white
