Plug with strain relief housing 2-pole green
Order only
Minimal order quantity: 50
Price (excl. VAT):
4,92 €
Subtotal: 246,00 €
MOQ: 50
EAN: 4045454267445
MPN: 893-1012
Package: 1
Box: 50
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Plug with strain relief housing 2-pole green |
| Brand | WAGO |
| Categories |
Plug-in Connectors
|
| Country of origin* | CH |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| Model | Plug |
| Connection type | Spring clamp connection |
| Locking mechanism | None |
| Rated current | 3 A |
| Rated voltage | 50 V |
| Number of poles | 2 |

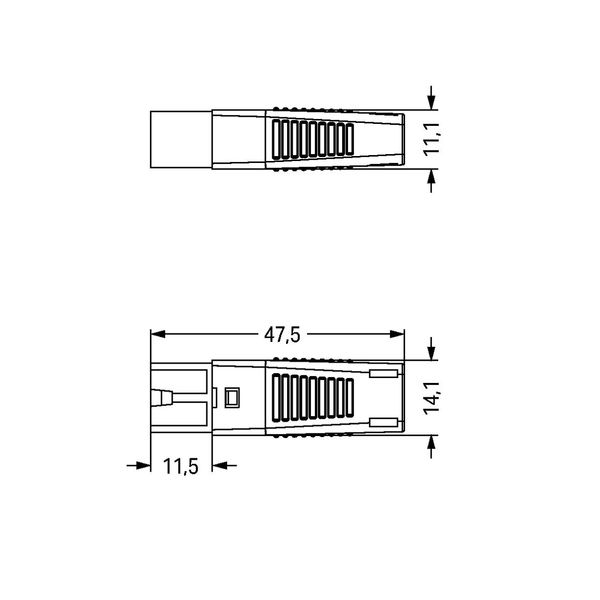

| Length | 47.5 mm |
| Degree of protection (IP) | IP20 |
| Pole codification | 1+, 2- |
Packing details
| Packing level 1 | 4045454267445 |
| Packing level 2 | 4045454267445 |
Other Technical data
| Width | 14.1 mm |
| Halogen free | Yes |
| With strain relief | Yes |
| Housing material | Polyamide (PA) |
| Cable diameter | 5-7 mm |
| Surface treatment contacts | Other |
| Pollution degree | 3 |
| Mechanical coding | Yes |
| Rated surge voltage | 0.8 kV |
| Continuity resistor | 3 mOhm |
| Contact material | Other |
| Number of connections per pole | 1 |
| Colour coding/contact insert | Green |
| Max. continuous temperature resistance contact part | 85 °C |
| Max. continuous temperature resistance strain relief | 105 °C |
Description
Plug with strain relief housing 2-pole green
