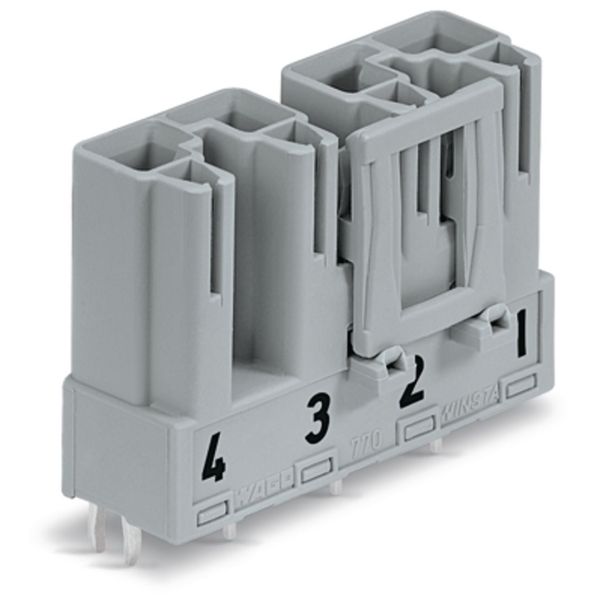

Plug for PCBs straight 4-pole gray

Name: Plug for PCBs straight 4-pole gray
Brand: WAGO
Price: 1.760 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 50

Price (excl. VAT):

1,76 €

This price is valid until 24.12.25

Subtotal: 88,00 € MOQ: 50

EAN: 4050821555537

MPN: 770-854/062-000

Package: 1

Box: 50

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Plug for PCBs straight 4-pole gray
Brand	WAGO
Categories	PCB Connectors & Terminals
Country of origin	DE
Harmonized System Code	8536 6990 00
Type of connection	Flexible PCB-connector
Rated voltage	400 V
Number of poles	4
Operating temperature	-35-85 °C
Rated surge voltage	6 kV
Type of electric connection	Soldering connection
Connector model	Free connector
Angle PCB/contact	90° (upwards vertical)
Rated current In	25 A

Packing level 1	4050821555537
Packing level 2	4050821555537

Colour housing	Grey
Contact type	Pin
Type of fastening	Solder
Inflammability class of insulation material according to with UL94	V0
Material of contact surface	Tin
Over voltage category	III
Pollution degree	3
Length pin	3.5 mm
Modular spacing connections	10 mm
Number of plug-in contact rows	1
Type of banding	None
Modular spacing contacts	10 mm
Material insulation body	Polyamide (PA)
Type of PCB fastening	Connecting contact
