WAGO

Plug 5-pole Cod. Q green

In stock: No Vendor stock: No Minimal order quantity: 50
Price (excl. VAT):
2,94 €
This price is valid until 24.12.25
Subtotal: 147,00 € MOQ: 50
EAN: 4045454071653
MPN: 770-1335
Package: 1
Box: 50
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Plug 5-pole Cod. Q green
Brand WAGO
Categories Plug-in Connectors
Country of origin DE
Harmonized System Code 8536 6990 00
Model Plug
Connection type Spring clamp connection
Locking mechanism Separate
Rated current 25 A
Rated voltage 400 V
Number of poles 5

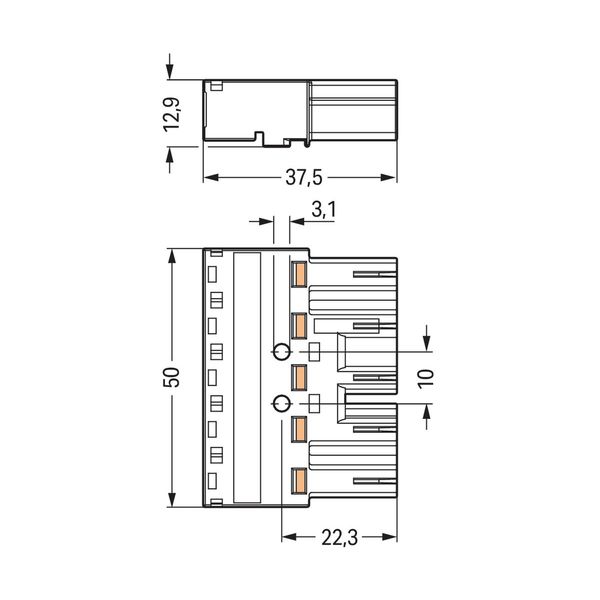

Length 37.5 mm
Degree of protection (IP) IP20

Packing details

Packing level 1 4045454071653
Packing level 2 4045454071653

Other Technical data

Width 50 mm
Halogen free No
Height 12.9 mm
With strain relief No
Housing material Polyamide (PA)
Surface treatment contacts Other
Pollution degree 3
Mechanical coding Yes
Rated surge voltage 6 kV
Continuity resistor 3 mOhm
Contact material Other
Number of connections per pole 2
Colour coding/contact insert Green
Connection cross section (fine-strand) 0.5-4 mm²
Connection cross section (solid-core) 0.5-4 mm²
Max. continuous temperature resistance contact part 85 °C
Max. continuous temperature resistance strain relief 105 °C

Description

Plug 5-pole 4,00 mm² green

Accessories

Locking lever for flying leads for manual operation black
In stock: No
WAGO
Locking lever for flying leads for manual operation black
0,166 €
This price is valid until 24.12.25
Subtotal: 4,15 € MOQ: 25
EAN: 4017332660907
MPN: 770-101
Package: 1
Box: 25
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Locking lever for flying leads for tool operation black
In stock: No
WAGO
Locking lever for flying leads for tool operation black
0,166 €
This price is valid until 24.12.25
Subtotal: 4,15 € MOQ: 25
EAN: 4017332749367
MPN: 770-111
Package: 1
Box: 25
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Locking lever for flying leads for manual operation white
In stock: No
WAGO
Locking lever for flying leads for manual operation white
0,17 €
This price is valid until 24.12.25
Subtotal: 4,25 € MOQ: 25
EAN: 4017332755221
MPN: 770-121
Package: 1
Box: 25
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Locking lever for flying leads for tool operation white
In stock: No
WAGO
Locking lever for flying leads for tool operation white
0,166 €
This price is valid until 24.12.25
Subtotal: 4,15 € MOQ: 25
EAN: 4017332755245
MPN: 770-131
Package: 1
Box: 25
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Wiring aid 2- to 5-pole Plastic orange
In stock: No
WAGO
Wiring aid 2- to 5-pole Plastic orange
4,12 €
This price is valid until 24.12.25
EAN: 4017332819787
MPN: 770-100
Package: 1
Box: 20
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Operating tool Blade: 2.5 x 0.4 mm with a partially insulated shaft
In stock: No
WAGO
Operating tool Blade: 2.5 x 0.4 mm with a partially insulated shaft
3,68 €
This price is valid until 24.12.25
EAN: 4045454937386
MPN: 210-719
Package: 1
Box: 50
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Snap-in frame
In stock: No Not Available
WAGO
Snap-in frame
N/A
Subtotal: 0,00 € MOQ: 100
EAN: 4045454997205
MPN:
Box: 100
Estimate delivery time at our warehouse (approx.): By request
Snap-in frame
In stock: No
WAGO
Snap-in frame
0,68 €
This price is valid until 24.12.25
Subtotal: 68,00 € MOQ: 100
EAN: 4050821117889
MPN: 770-340
Box: 100
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Snap-in frame
In stock: No
WAGO
Snap-in frame
0,68 €
This price is valid until 24.12.25
Subtotal: 68,00 € MOQ: 100
EAN: 4050821623410
MPN: 770-321
Box: 100
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Snap-in frame
In stock: No
WAGO
Snap-in frame
0,68 €
This price is valid until 24.12.25
Subtotal: 68,00 € MOQ: 100
EAN: 4050821623427
MPN: 770-341
Box: 100
Estimate delivery time at our warehouse (approx.): 4-6 weeks
