PCB terminal block push-button 1.5 mm² red
In stock: No
Vendor stock: No
Minimal order quantity: 30
Price (excl. VAT):
1,47 €
Subtotal: 44,10 €
MOQ: 30
EAN: 4050821784241
MPN: 250-110/000-005
Box: 30
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PCB terminal block push-button 1.5 mm² red |
| Brand | WAGO |
| Categories |
PCB Connectors & Terminals
|
| Country of origin | CH |
| Harmonized System Code | 8536 9010 00 |
| Rated voltage | 160 V |
| Number of levels | 1 |
| Rated surge voltage | 2.5 kV |
| Angle PCB/conductor connection | 45°/135° (downwards inclined) |
| Rated current In | 8 A |
| Number of electrical connections | 10 |
Packing details
| Packing level 1 | 4050821784241 |
| Packing level 2 | 4050821784241 |
Other Technical data

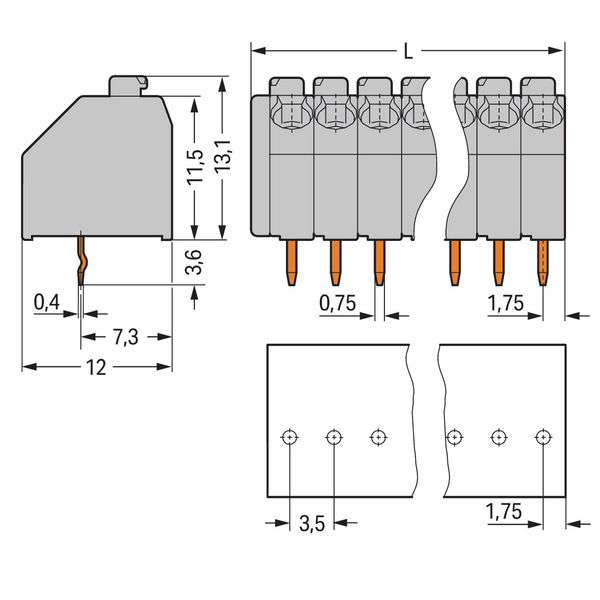

| Height | 13.1 mm |
| Colour housing | Red |
| Operating temperature | -60-105 °C |
| Type of fastening | Solder |
| Inflammability class of insulation material according to with UL94 | V0 |
| Over voltage category | III |
| Pollution degree | 2 |
| Connection type conductor | Push-in clamp connection |
| Connection type PCB | Soldering connection |
| Length pin | 3.6 mm |
| Material connection surface | Tin |
| Modular spacing connections | 3.5 mm |
| Type of banding | None |
| Connectable conductor cross section solid-core | 0.2-1.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-1 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.2-1.5 mm² |
| Connectable conductor cross section multi-wired | 0.2-1.5 mm² |
| Material insulation body | Thermoplastic |
| Type of PCB fastening | Connecting contact |
Description
PCB terminal block push-button 1.5 mm² Pin spacing 3.5 mm 10-pole Push-in CAGE CLAMP® 1,50 mm² red
