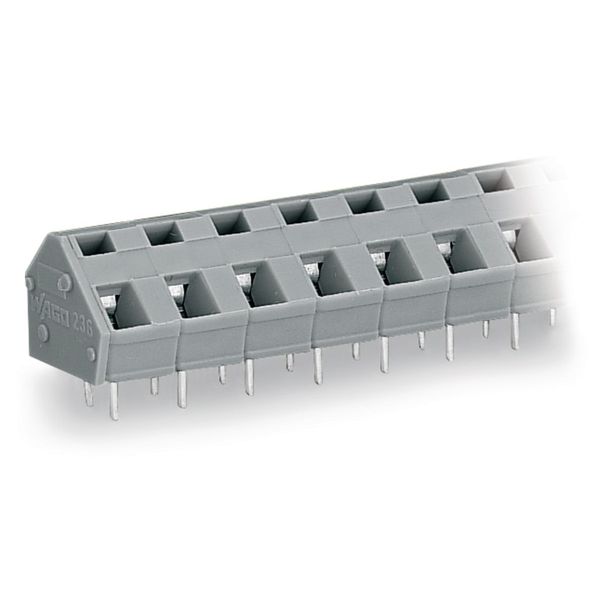

PCB terminal block 2.5 mm² Pin spacing 7.5/7.62 mm gentian blue
Order only
Minimal order quantity: 50
Price (excl. VAT):
0,73 €
Subtotal: 36,50 €
MOQ: 50
EAN: 4055143247689
MPN: 236-503/000-015
Box: 50
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PCB terminal block 2.5 mm² Pin spacing 7.5/7.62 mm gentian blue |
| Brand | WAGO |
| Categories |
PCB Connectors & Terminals
|
| Country of origin* | CH |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| Rated voltage | 630 V |
| Number of levels | 1 |
| Rated surge voltage | 6 kV |
| Angle PCB/conductor connection | 45°/135° (downwards inclined) |
| Rated current In | 24 A |
| Number of electrical connections | 3 |
Packing details
| Packing level 1 | 4055143247689 |
| Packing level 2 | 4055143247689 |
Other Technical data
| Height | 13 mm |
| Colour housing | Blue |
| Operating temperature | -60-105 °C |
| Type of fastening | Solder |
| Inflammability class of insulation material according to with UL94 | V0 |
| Over voltage category | III |
| Pollution degree | 2 |
| Connection type conductor | Spring clamp connection |
| Connection type PCB | Soldering connection |
| Length pin | 4 mm |
| Material connection surface | Tin |
| Modular spacing connections | 7.5 mm |
| Type of banding | None |
| Connectable conductor cross section solid-core | 0.08-2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-1.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.08-2.5 mm² |
| Connectable conductor cross section multi-wired | 0.08-2.5 mm² |
| Material insulation body | Thermoplastic |
| Type of PCB fastening | Connecting contact |
Description
PCB terminal block 2.5 mm² Pin spacing 7.5/7.62 mm 3-pole CAGE CLAMP® commoning option 2,50 mm² gentian blue
