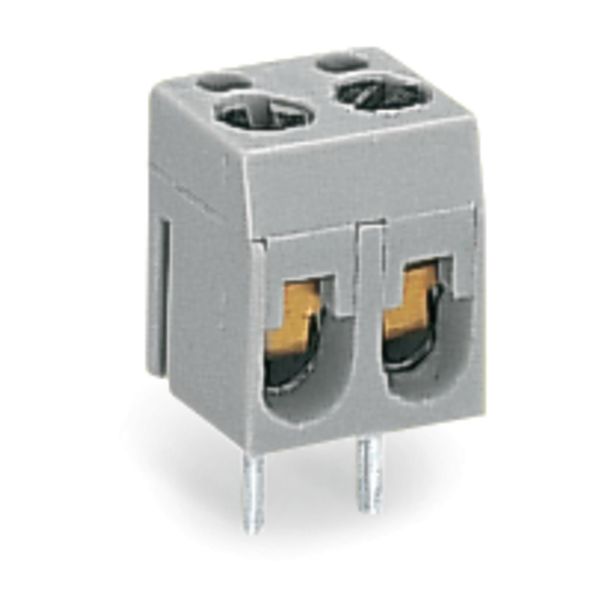

PCB terminal block 2.5 mm² Pin spacing 5.08 mm gray
Order only
Minimal order quantity: 100
Price (excl. VAT):
0,57 €
Subtotal: 57,00 €
MOQ: 100
EAN: 4045454539900
MPN: 237-132
Package: 1
Box: 100
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PCB terminal block 2.5 mm² Pin spacing 5.08 mm gray |
| Brand | WAGO |
| Categories |
PCB Connectors & Terminals
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| Rated voltage | 250 V |
| Number of levels | 1 |
| Rated surge voltage | 2.5 kV |
| Angle PCB/conductor connection | 0°/180° (horizontal) |
| Rated current In | 16 A |
| Number of electrical connections | 2 |
Packing details
| Packing level 1 | 4045454539900 |
| Packing level 2 | 4045454539900 |
| Packing level 3 | 4045454539900 |
Other Technical data
| Height | 11 mm |
| Colour housing | Grey |
| Operating temperature | 105 °C |
| Type of fastening | Solder |
| Inflammability class of insulation material according to with UL94 | V0 |
| Over voltage category | III |
| Pollution degree | 2 |
| Connection type conductor | Screw connection |
| Connection type PCB | Soldering connection |
| Diameter connection pin | 1 mm |
| Length pin | 4.5 mm |
| Material connection surface | Tin |
| Modular spacing connections | 5.08 mm |
| Type of banding | None |
| Connectable conductor cross section multi-wired | 0.5-2.5 mm² |
| Material insulation body | Thermoplastic |
| Type of PCB fastening | Connecting contact |
Description
PCB terminal block 2.5 mm² Pin spacing 5.08 mm 2-pole 2,50 mm² gray
