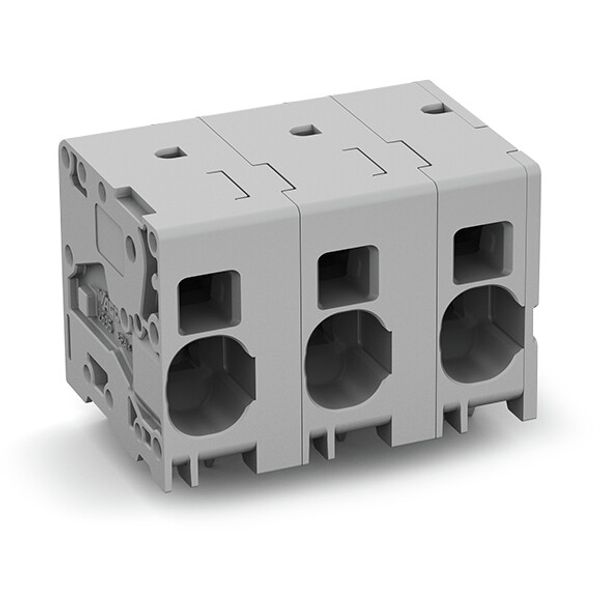

PCB terminal block 16 mm² Pin spacing 15 mm gray

Name: PCB terminal block 16 mm² Pin spacing 15 mm gray
Brand: WAGO
Price: 13.900 EUR
Availability: PreOrder

Order only Minimal order quantity: 20

Price (excl. VAT):

13,90 €

This price is valid until 24.12.25

Subtotal: 278,00 € MOQ: 20

EAN: 4055143861465

MPN: 2636-1357

Package: 1

Box: 20

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	PCB terminal block 16 mm² Pin spacing 15 mm gray
Brand	WAGO
Categories	PCB Connectors & Terminals
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
Rated voltage	1000 V
Number of levels	1
Rated surge voltage	8 kV
Angle PCB/conductor connection	0°/180° (horizontal)
Rated current In	76 A
Number of electrical connections	7

Packing level 1	4055143861465
Packing level 2	4055143861465

Height	28.6 mm
Colour housing	Grey
Operating temperature	-60-105 °C
Type of fastening	Solder
Inflammability class of insulation material according to with UL94	V0
Over voltage category	III
Pollution degree	2
Connection type conductor	Spring clamp connection
Connection type PCB	Soldering connection
Length pin	4 mm
Material connection surface	Tin
Modular spacing connections	10 mm
Type of banding	None
Connectable conductor cross section solid-core	0.75-16 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.75-16 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.75-25 mm²
Connectable conductor cross section multi-wired	0.75-16 mm²
Material insulation body	Polyamide (PA)
Type of PCB fastening	Connecting contact
