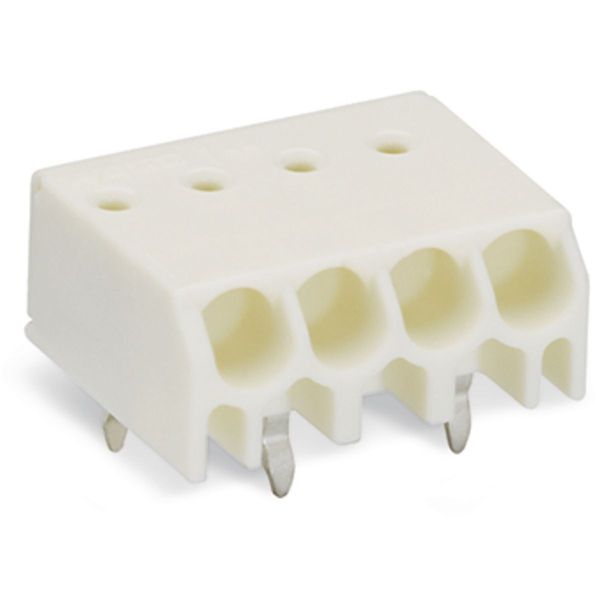

PCB terminal block 1.5 mm² Pin spacing 3.5 mm white
Order only
Minimal order quantity: 500
Price (excl. VAT):
0,456 €
Subtotal: 228,00 €
MOQ: 500
EAN: 4055143812771
MPN: 744-306/364-000
Package: 1
Box: 500
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PCB terminal block 1.5 mm² Pin spacing 3.5 mm white |
| Brand | WAGO |
| Categories |
PCB Connectors & Terminals
|
| Country of origin* | CH |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| Rated voltage | 320 V |
| Number of levels | 1 |
| Rated surge voltage | 4 kV |
| Angle PCB/conductor connection | 0°/180° (horizontal) |
| Rated current In | 2 A |
| Number of electrical connections | 6 |
Packing details
| Packing level 1 | 4055143812771 |
| Packing level 2 | 4055143812771 |
Other Technical data
| Height | 9 mm |
| Colour housing | White |
| Operating temperature | -60-105 °C |
| Type of fastening | Solder |
| Inflammability class of insulation material according to with UL94 | V0 |
| Over voltage category | III |
| Pollution degree | 2 |
| Connection type conductor | Push-in clamp connection |
| Connection type PCB | Soldering connection |
| Length pin | 2.4 mm |
| Material connection surface | Tin |
| Modular spacing connections | 3.5 mm |
| Type of banding | None |
| Connectable conductor cross section solid-core | 0.5-1.5 mm² |
| Material insulation body | Thermoplastic |
| Type of PCB fastening | Connecting contact |
Description
PCB terminal block 1.5 mm² Pin spacing 3.5 mm 6-pole PUSH WIRE® 1,50 mm² white
