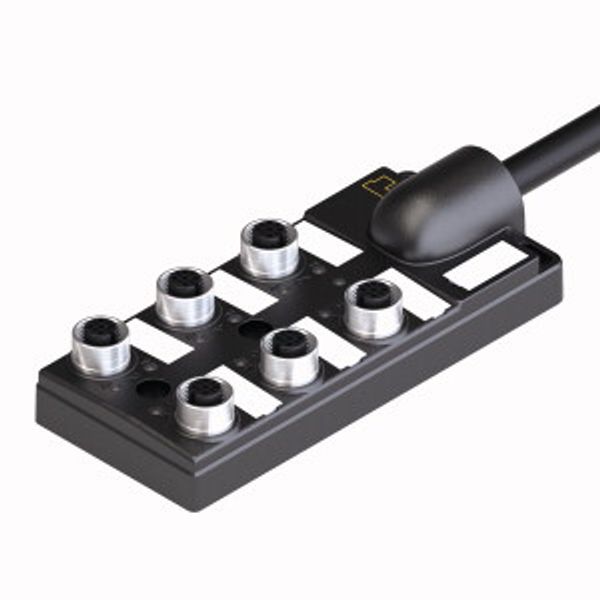

Passive actuator/sensor junction box, M12 x 1 6-port, with integral homerun cable TB-6M12-4-5/TXL

Name: Passive actuator/sensor junction box, M12 x 1 6-port, with integral homerun cable TB-6M12-4-5/TXL
Brand: TURCK
Price: 103.950 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

103,95 €

This price is valid until 24.12.25

EAN: 4047101275865

MPN: 6611925

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Passive actuator/sensor junction box, M12 x 1 6-port, with integral homerun cable TB-6M12-4-5/TXL
Brand	TURCK
Categories	Pre-wired Sensor/Actuator Module
Country of origin	US
Harmonized System Code	8544 4290 00
Rated voltage	30 V
Operating voltage	30 V
Length of the preassembled cable	5 m

Packing details

Packing level 1

4047101275865, 4047101275865

Other Technical data

Colour housing	Black
Housing material	Plastic
Operating temperature	-40 °C
With potential separation	No
Material of contact surface	Gold
With LED indication	No
Connection for NPN-sensors	No
Type of branches for sensor-/actuator cables	M12
Thread sleeves sensor/actuator slots	M12
Cable length configurable	No
Fix cable version suitable for cable guide chain	No
Material contact body	Brass

Description

Passieve actuator / Sensor-verdeler M12 x 1, 6-voudig, met vast aangesloten leiding, Nominale spanning 30 V, Kabellengte 5 m, Behuizingsmateriaal: nylon, Kleur behuizing: zwart, Beschermingsklasse IP67, RoHS-conform, Conform CE, I/O-steekplaats (aantal polen): 3-polig + PE
